25 Utility Room Ideas Layout Mistakes To Avoid

Every mistake here is one I made, across three houses and one flat, and most of them were made at the drawing stage rather than on site. That is the trouble with a utility room ideas layout: decided in an afternoon with a pencil, lived with for a decade. The room is small enough that a two-inch error in one place shows up as a door that will not open somewhere else. I have moved a sink, refitted a worktop and taken a stud wall down again, all because of numbers I did not check before ordering. Twenty-five of them are below, with what I did about each.

The utility room ideas layout errors I keep repeating

Four numbers decide almost everything in a utility, and I have got each one wrong at least once.

The first is the appliance opening. A full-size washer is 27 inches wide, 30 to 34 inches deep with the door on and 36 to 39 inches high. Give it a 29-inch opening, 4 to 6 inches behind for hoses and vent, an inch above.

The second is the walkway. Thirty-six inches between opposite runs is the minimum, 42 if two of you use the room or a front-loader door swings into it, since that door alone swings 20 to 24 inches.

The third is the worktop. Thirty-six inches finished, so an under-counter machine must be under 34 inches tall once you allow for the counter.

The fourth is air. Thirty cfm minimum, 50 to 80 if you dry clothes in there, on a run-on timer sited high and opposite the door.

Get those four right and the rest is cabinetry. Get one wrong and you feel it every wash. If the room is tight, small utility room ideas layout works through plans under 6 feet, and under stairs storage covers the sloping-ceiling version.

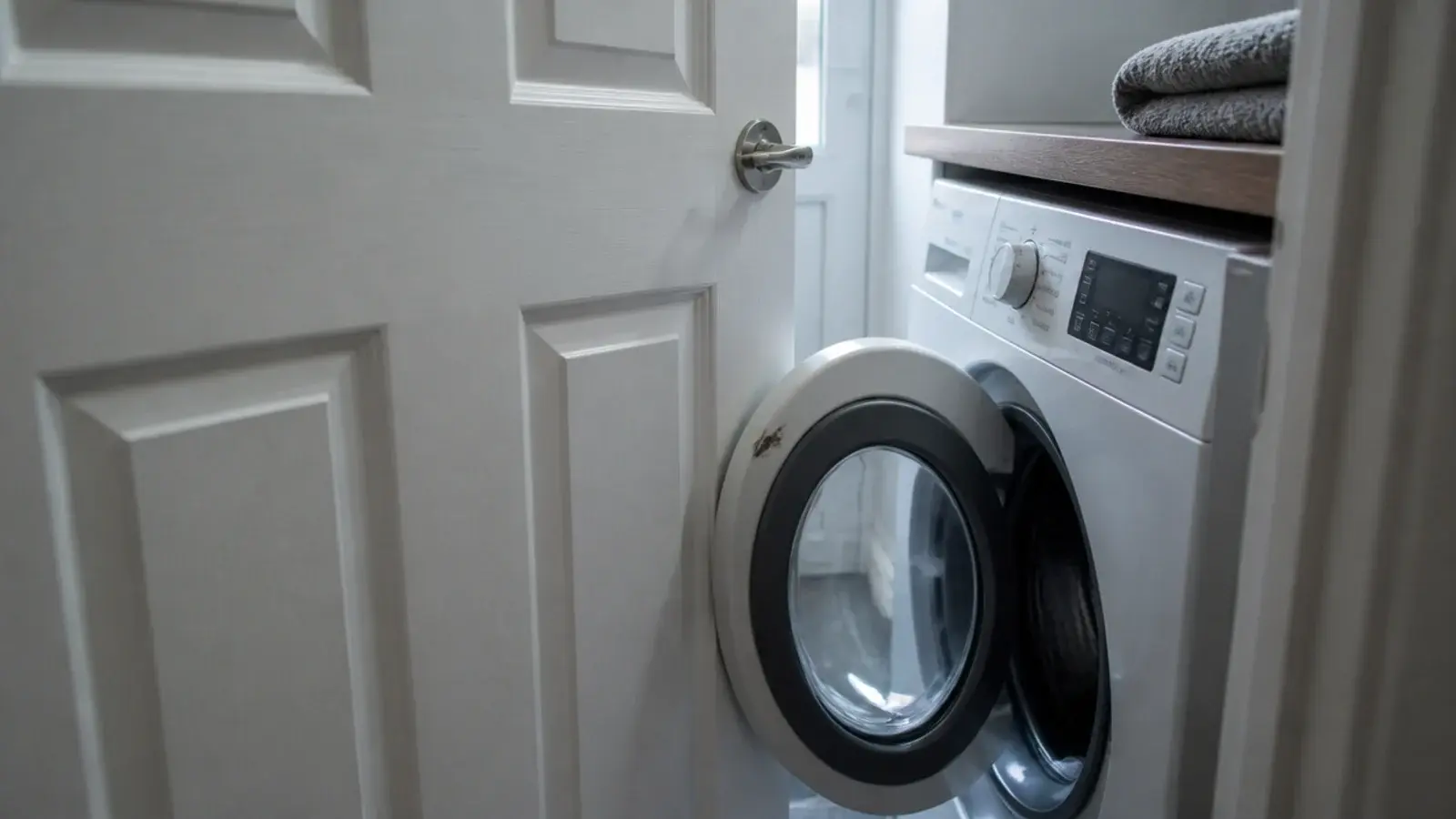

Mistake 1: The door swung straight into the machine door

The internal door stayed where it had always been. Opened together, it met the washer door in the middle, with nowhere left to stand.

The fix: swing it outward or fit a pocket door. A 30-inch door needs a 30 to 34 inch clear arc; a slider hands it all back.

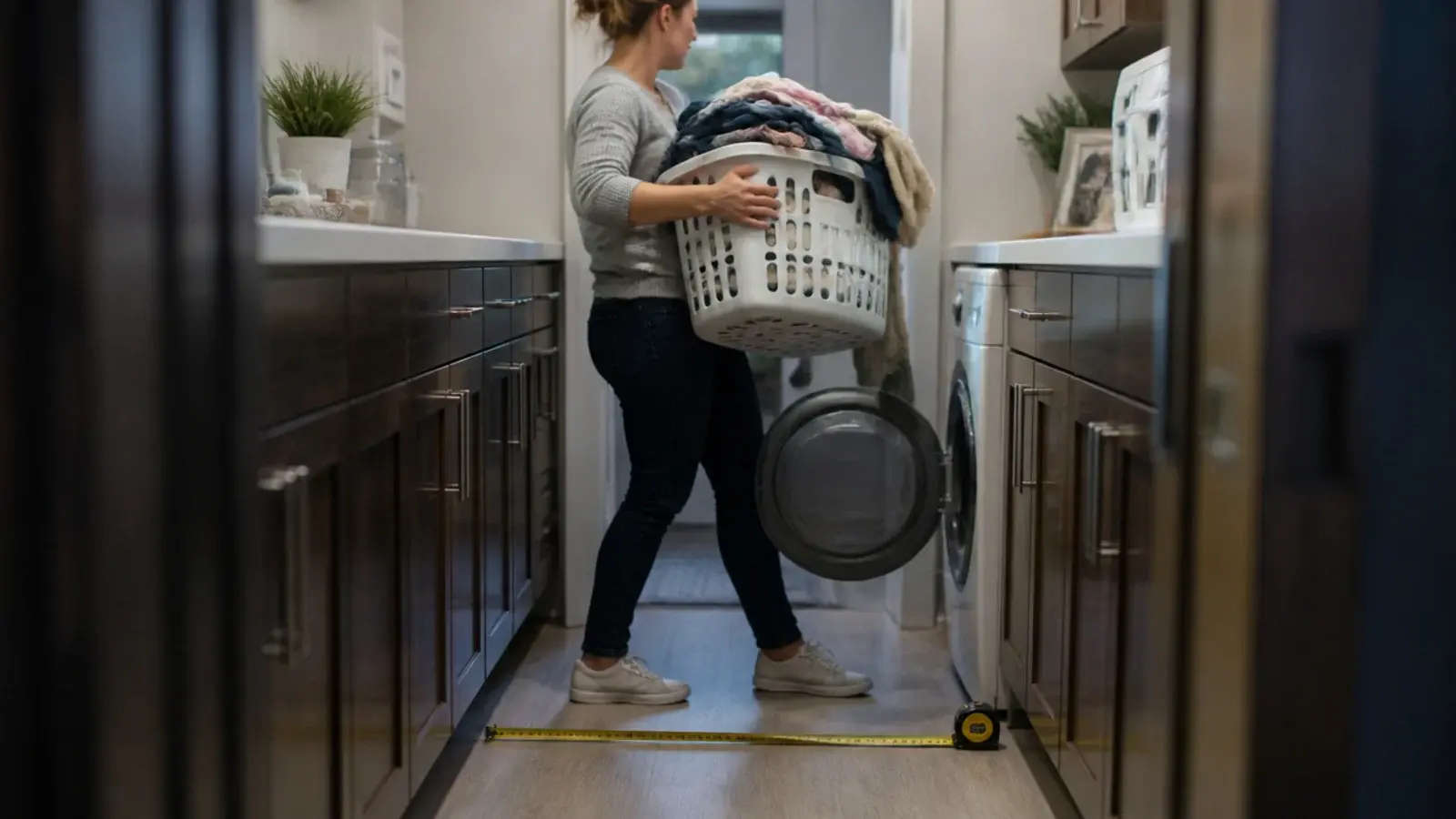

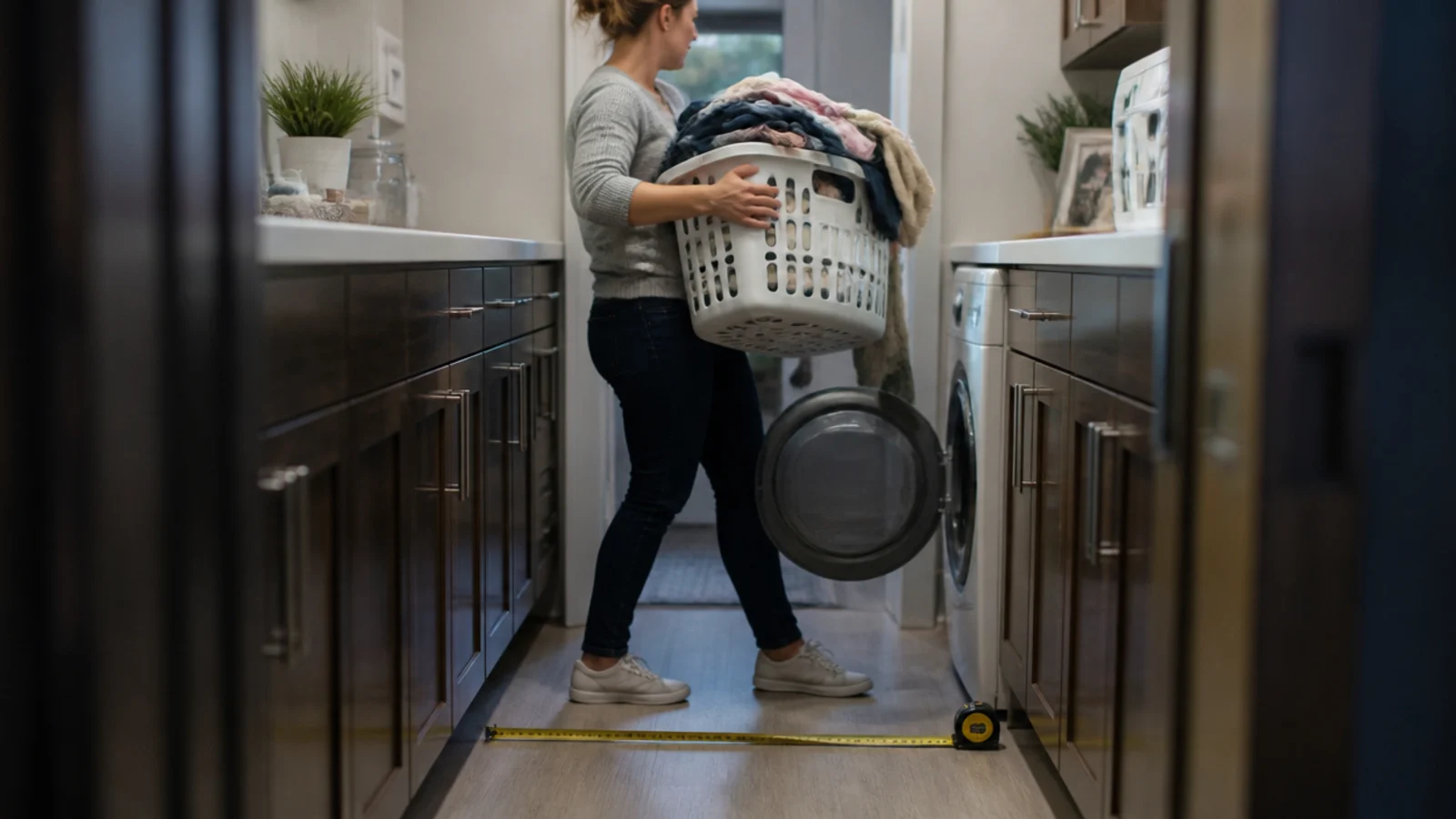

Mistake 2: I called thirty inches a walkway

Thirty inches looked fine on paper and in an empty room. With a basket on my hip and the dryer door open, I turned sideways for two years.

The fix: 36 inches between opposite runs, 42 if two people use it or an appliance door opens into the route.

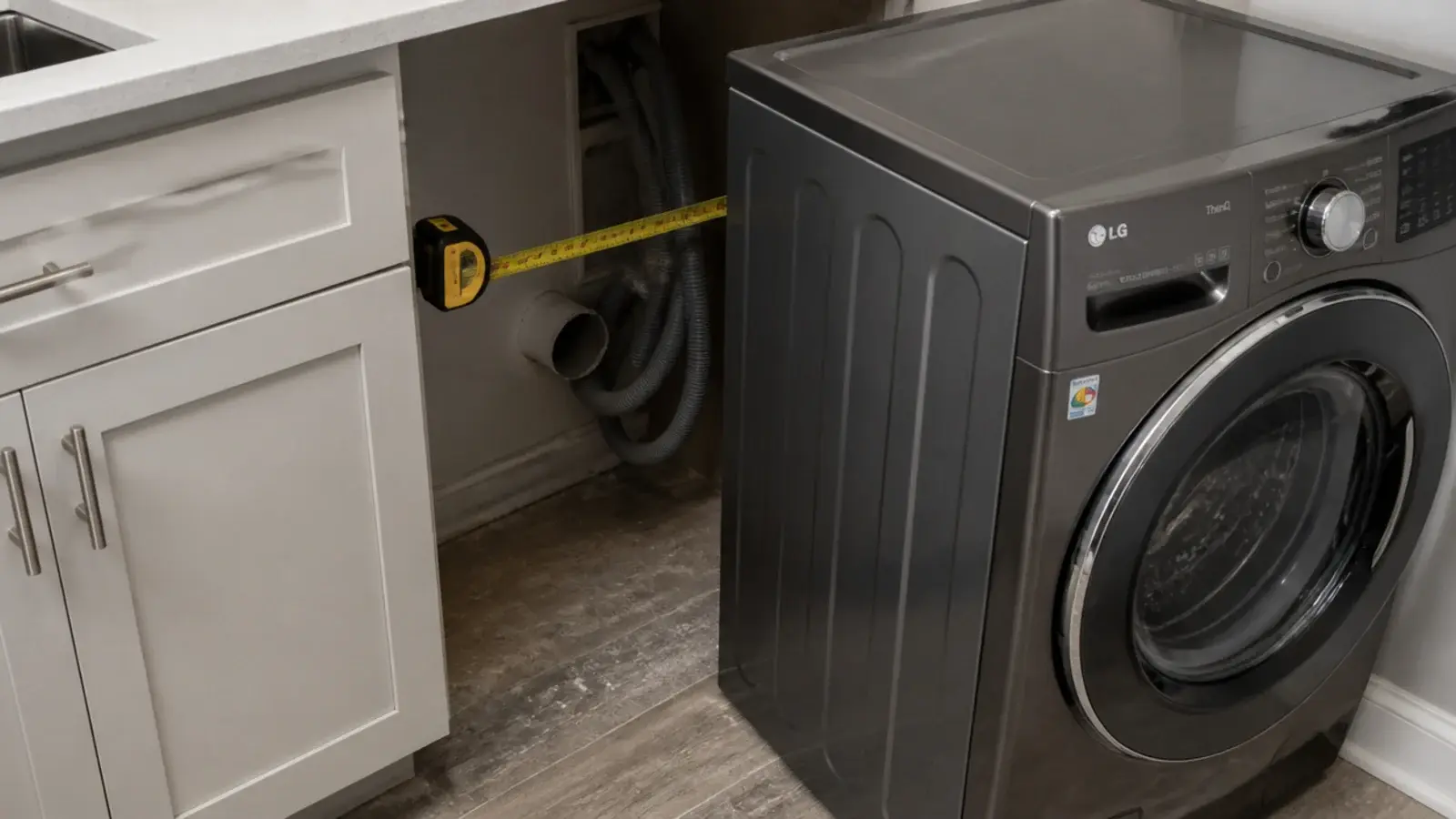

Mistake 3: I forgot the four inches behind for hoses

I measured the alcove, ordered cabinets to fit exactly, then found the machine would not go back because of the hoses and vent behind it.

The fix: leave 4 to 6 inches behind for hoses, valves and vent. A 27-inch machine wants 36 to 40 inches of depth off the wall.

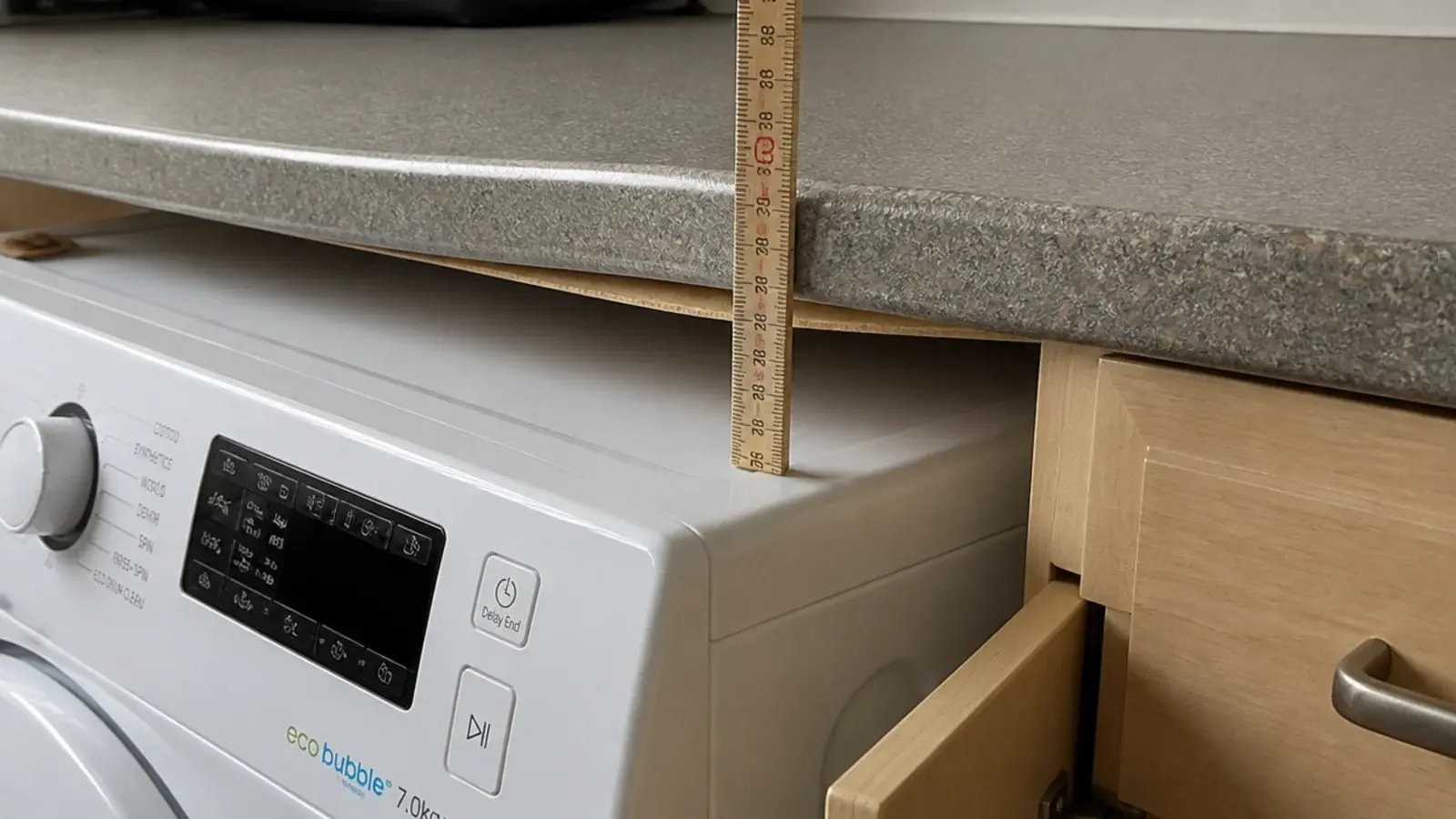

Mistake 4: I bought a machine too tall for the worktop

The machine was 34.5 inches tall. The worktop was 36. I had assumed an inch and a half of counter would accommodate itself somehow. It did not.

The fix: under-counter machines have to be under 34 inches tall. Measure from finished floor to counter underside before ordering.

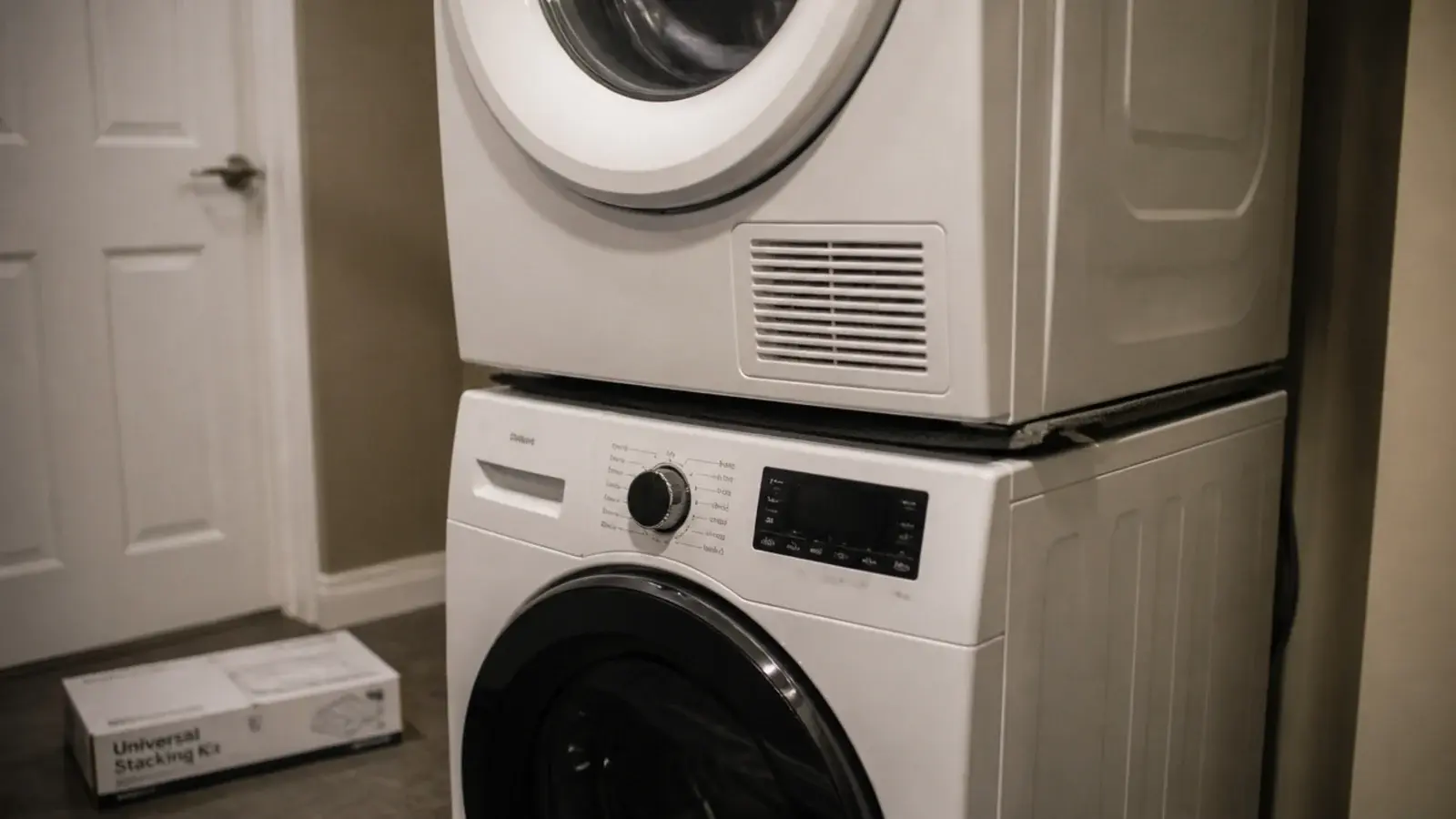

Mistake 5: I stacked without the manufacturer kit

I stacked a dryer on a washer with a rubber mat between them because the bracket cost $50 and felt like a rip-off. On the first 1,400 rpm spin it walked two inches.

The fix: the manufacturer's own stacking kit, $30 to $60, front-loaders only, never a top-loader.

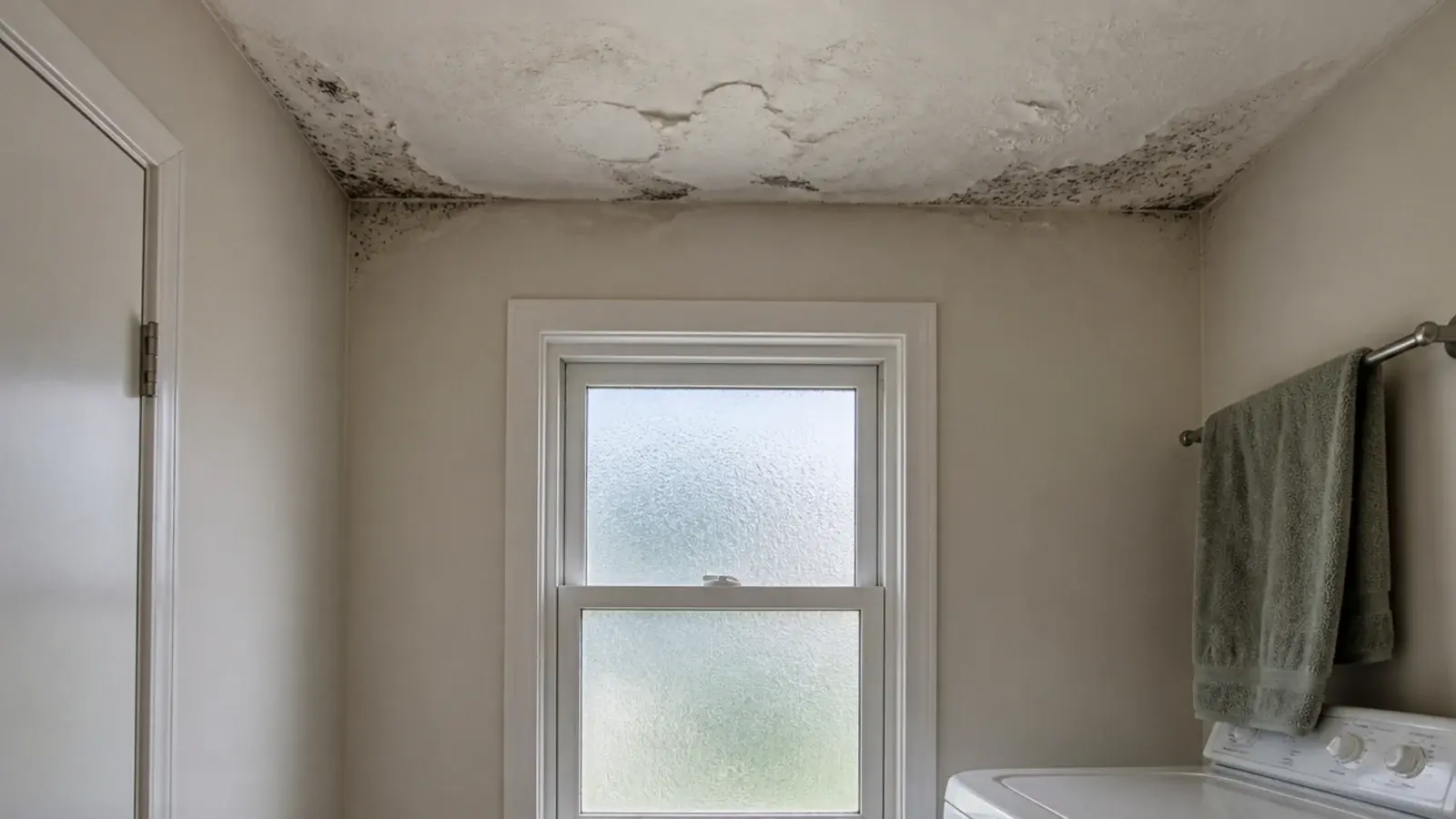

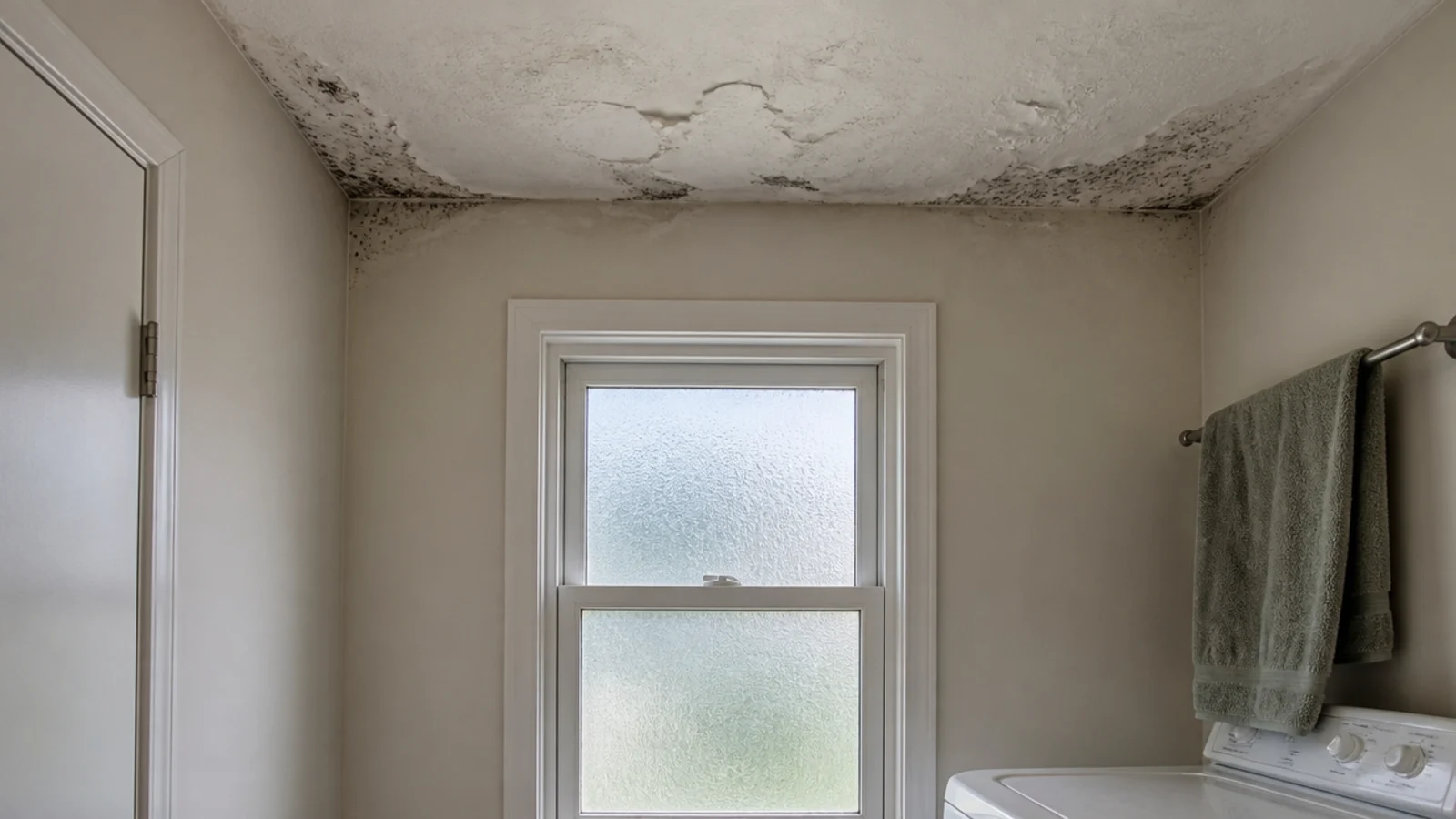

Mistake 6: I left extraction out entirely

There was a window, so I decided a fan was unnecessary. By January the paint above the dryer had blistered and black mould reached the corner behind the door.

The fix: 30 cfm minimum, 50 to 80 if you dry clothes in there, on a 15-minute run-on timer sited high, opposite the door.

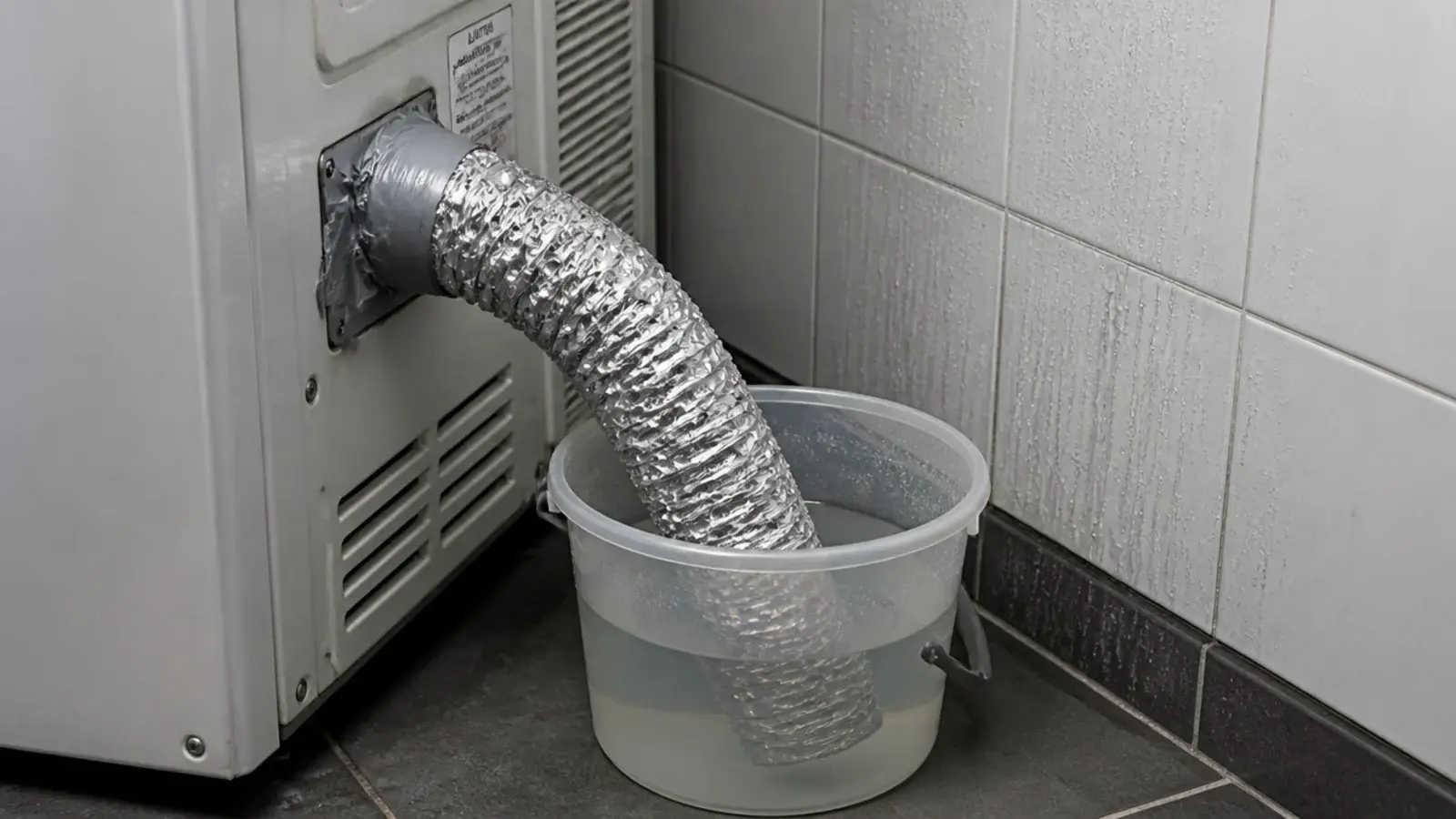

Mistake 7: I vented the dryer into the room

A previous owner had run the dryer hose into a bucket in the corner, and I left it a winter. One load puts about 2 litres of water into the air.

The fix: rigid 4-inch duct outside, 35 feet of equivalent length maximum, minus 5 feet per elbow. Or buy a condenser.

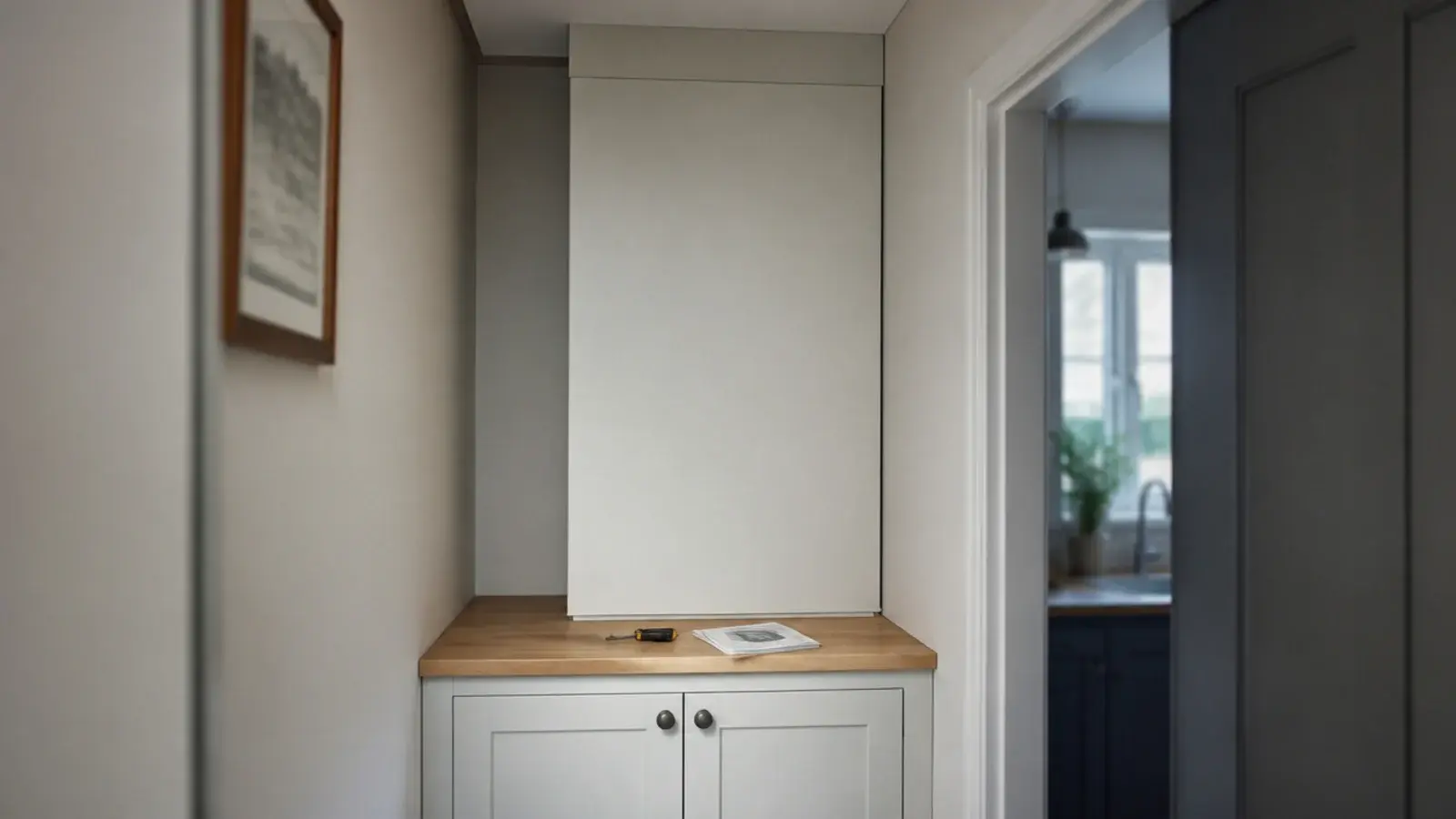

Mistake 8: I boxed the boiler into a sealed cupboard

I built a neat MDF cupboard around the boiler with a fixed front, because it looked untidy. The engineer refused to service it, in writing.

The fix: keep the manufacturer's clearances, usually 2 inches at the sides and 12 inches of working space at the front, behind a removable panel.

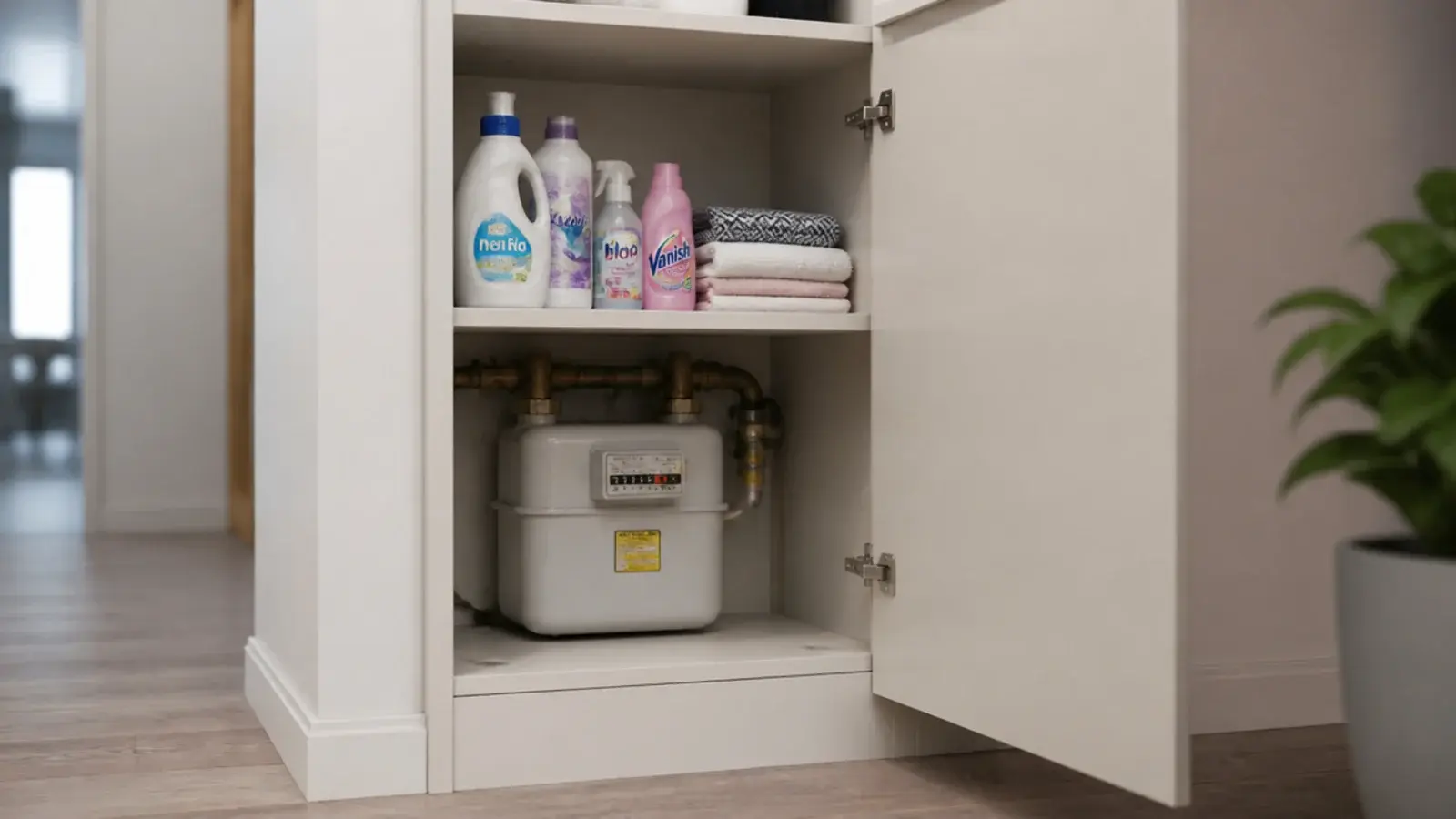

Mistake 9: I built a cupboard across the gas meter

Same room, same instinct. I ran a shelved cupboard across the gas meter and sealed the back, putting the emergency control valve behind two screws and a shelf of detergent.

The fix: a meter needs ventilation and a valve reachable without tools. Louvred door, nothing stored in front.

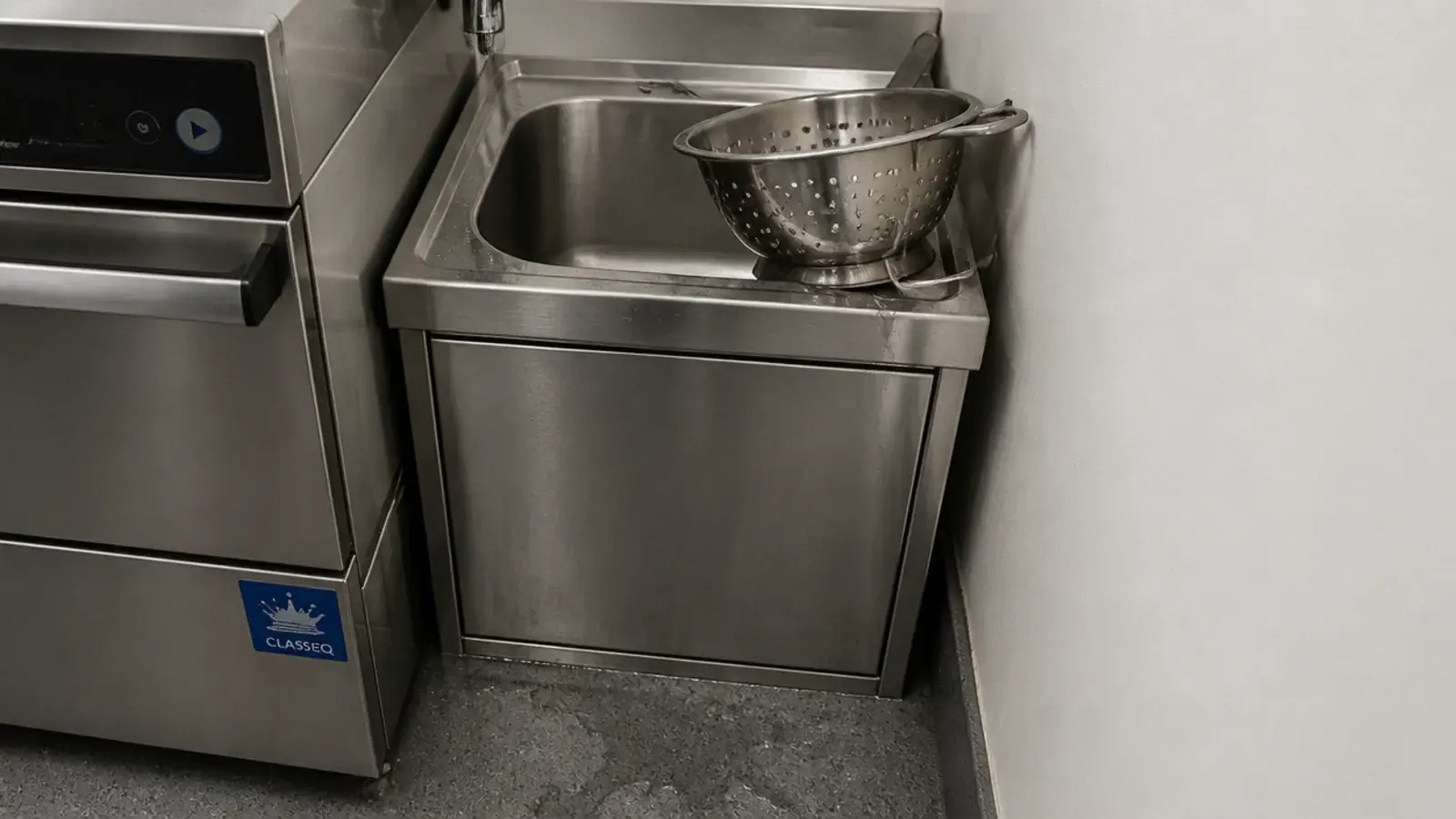

Mistake 10: I sited the sink where there was no drainer

I squeezed the sink into the last 24 inches of the run because that was what was left. Everything coming out of it dripped onto the floor.

The fix: 24 inches of drainer worktop beside the bowl, which wants to be 22 to 25 inches wide and 10 to 12 deep.

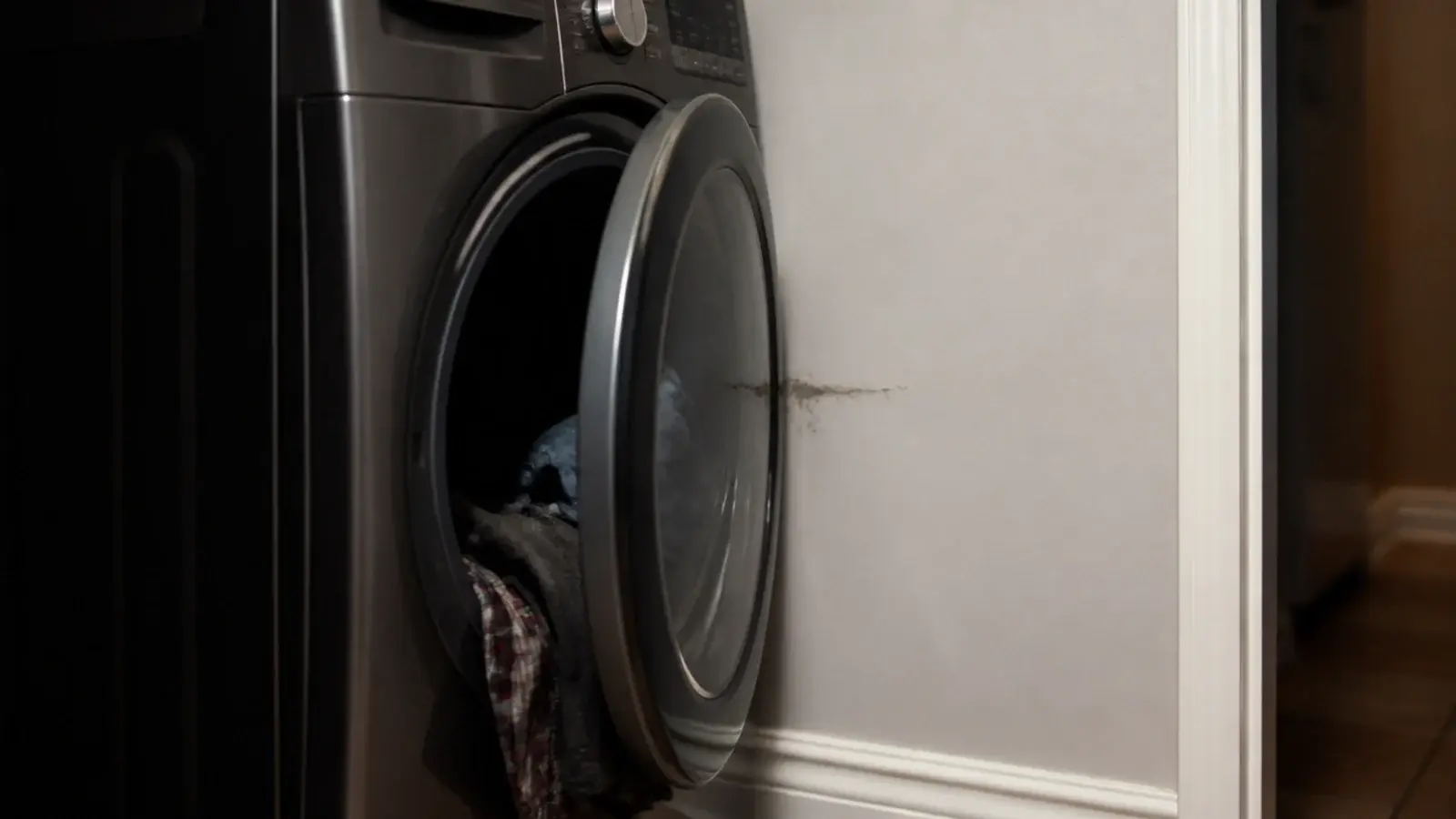

Mistake 11: I cornered the machine and the door hit the wall

I put the washer hard into the corner and its door hit the return wall at 40 degrees. I loaded it sideways for a year.

The fix: check the hinge is reversible before you buy. A front-loader door swings 20 to 24 inches and needs room to do it.

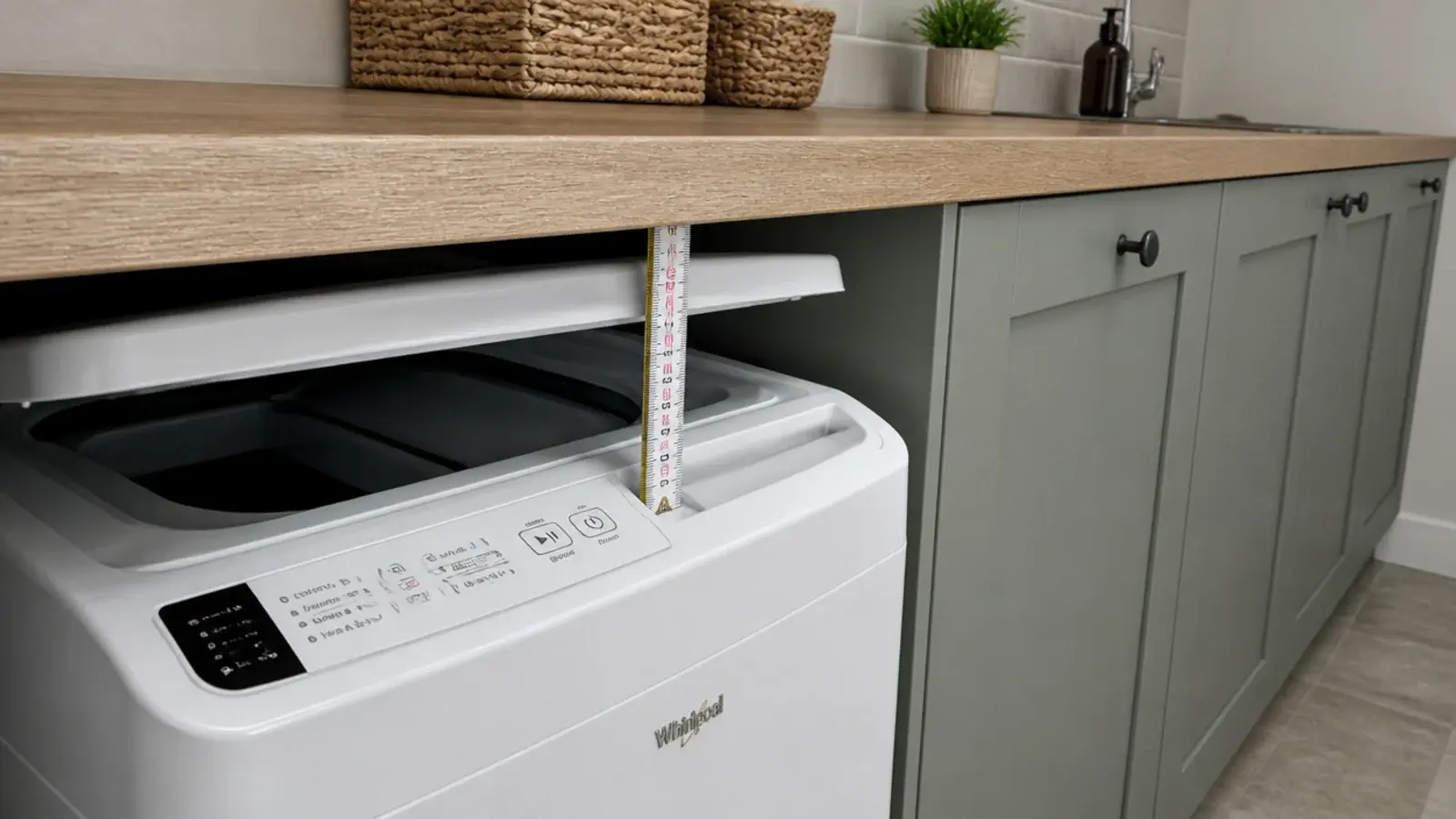

Mistake 12: I drew a worktop over a top-loader

I drew a continuous worktop over the top-loader we already owned, so the lid opened into the underside of the counter and stopped dead.

The fix: top-loaders need 20 inches of clear height above the lid. A continuous worktop works only over front-loaders under 34 inches tall.

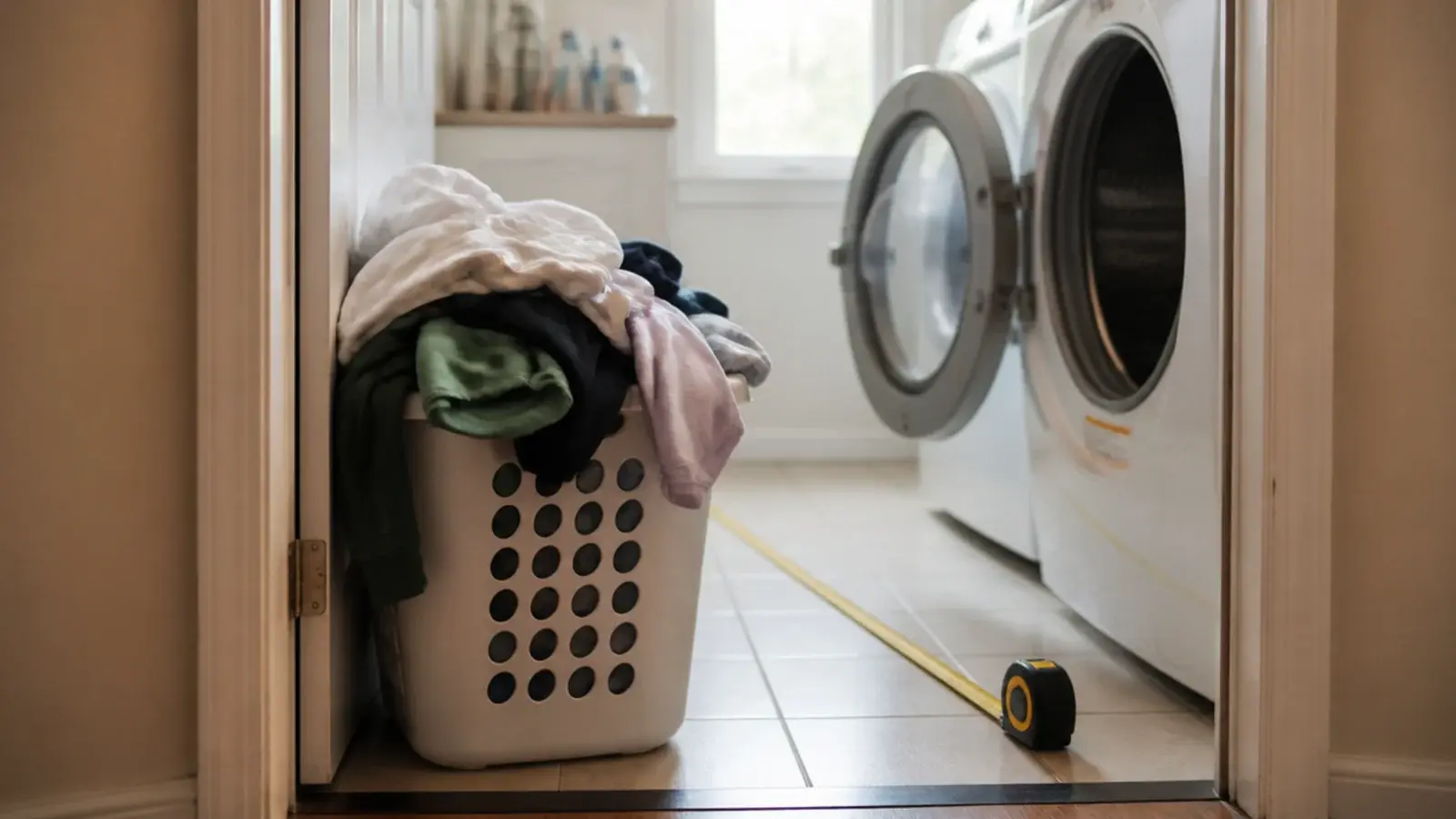

Mistake 13: I left no floor to load a basket from

On the plan there was 30 inches in front of the machines, which looked generous. With a full basket, the open door took most of it and the basket lived in the doorway.

The fix: 36 to 42 inches of clear floor in front, measured with the door fully open.

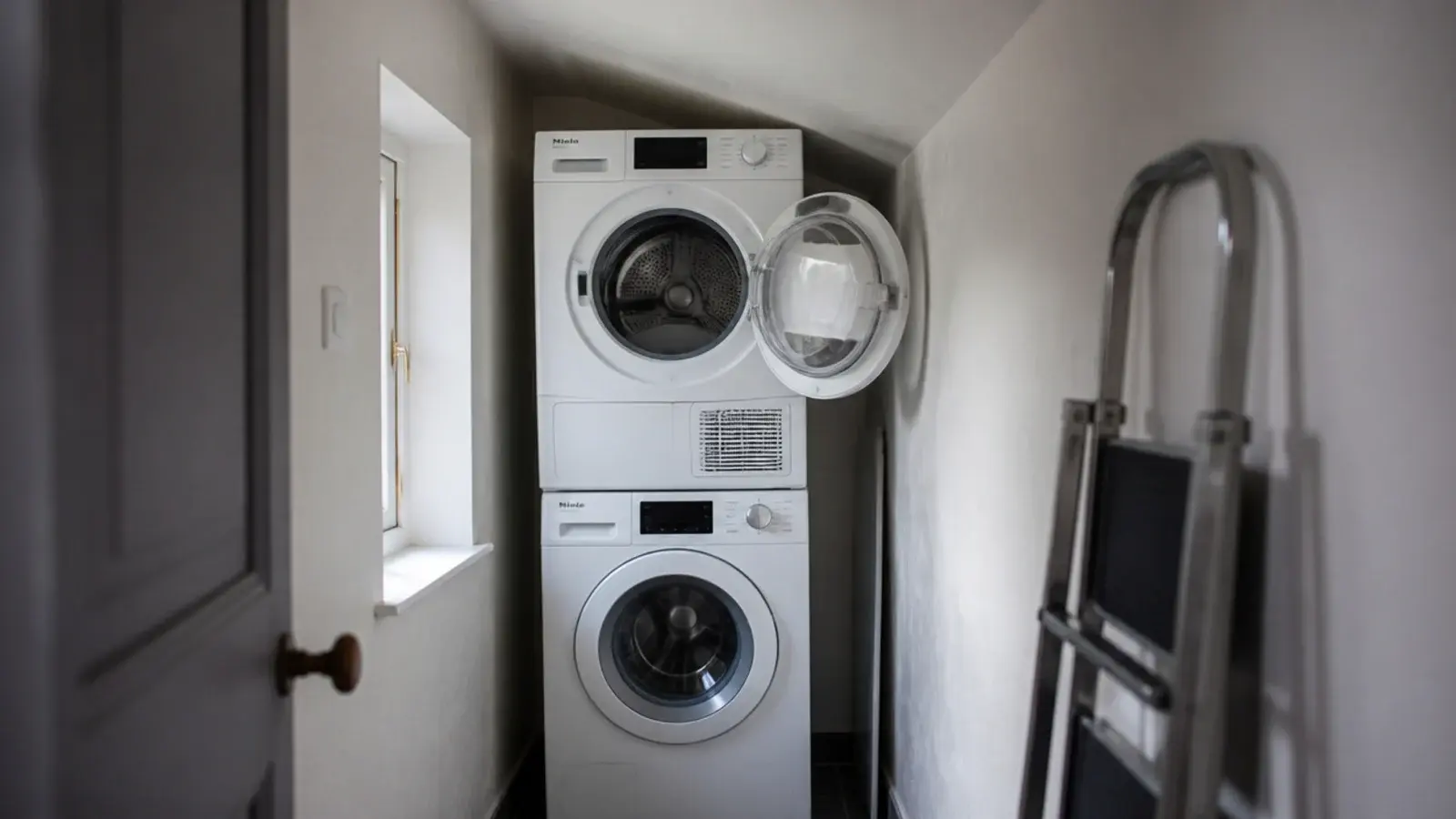

Mistake 14: I stacked a pair under a sloping ceiling

The stacked pair measured 78 inches. The ceiling sloped to 76 at that end, which I discovered when the top machine would not go on.

The fix: a stacked pair runs 74 to 80 inches tall and wants 79 to 84 inches of ceiling for the upper door.

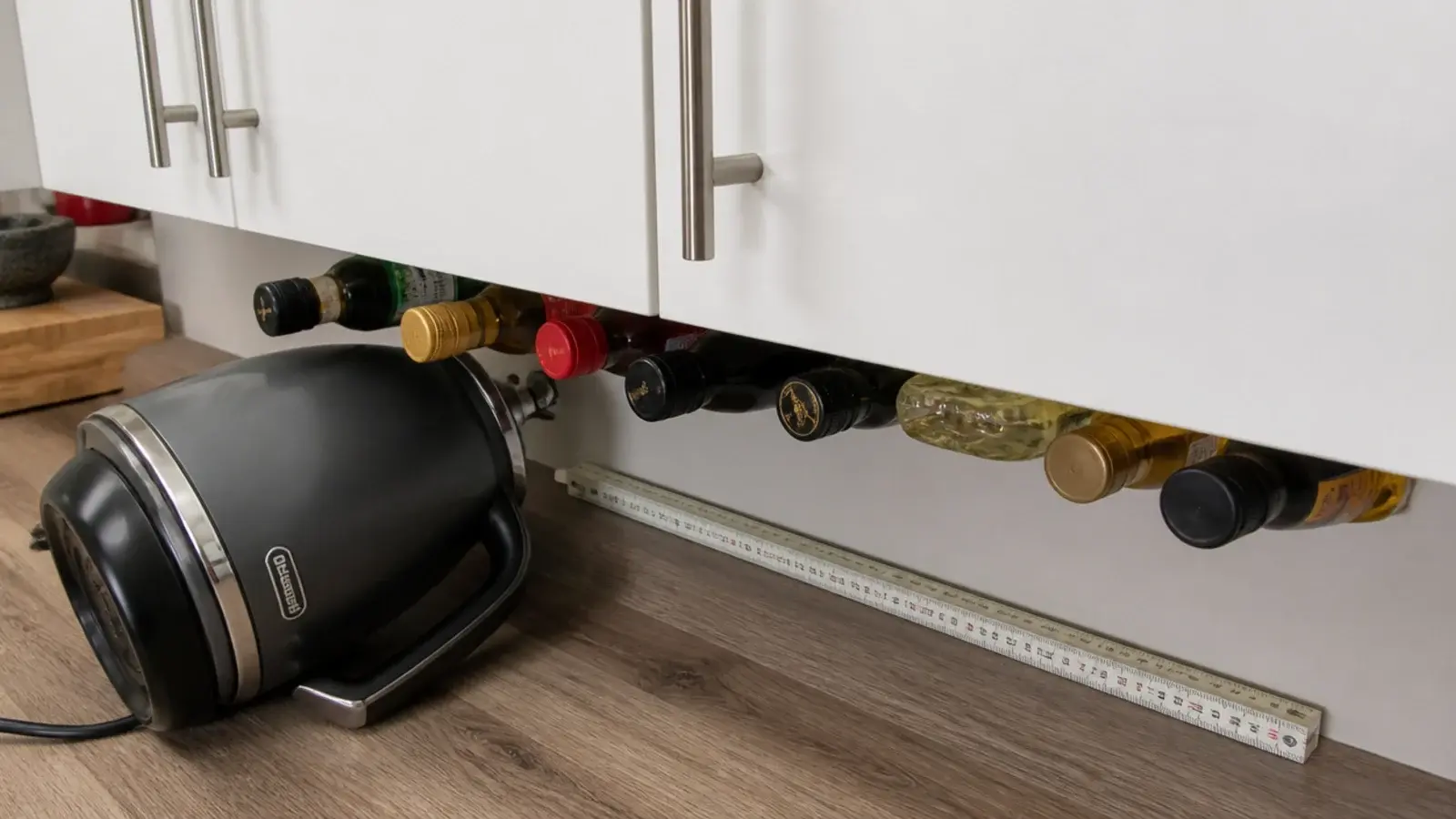

Mistake 15: I hung the wall cabinets too low

I hung the wall units 12 inches above the worktop for an extra shelf. Nothing taller than a detergent bottle fitted underneath, and I caught my head weekly.

The fix: 18 inches of clearance above the worktop, cabinet bottom edge at 54 inches.

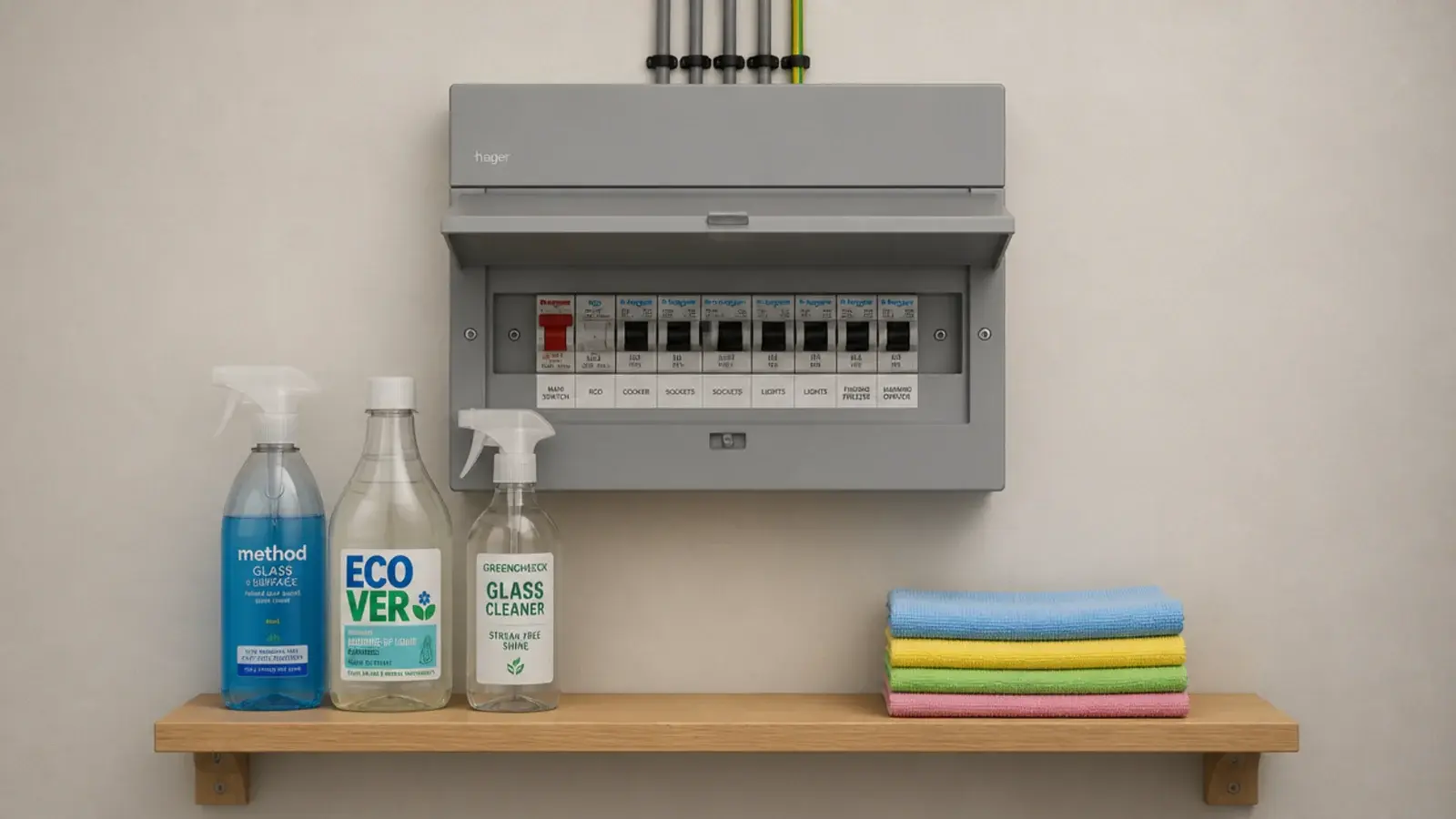

Mistake 16: I ran a shelf across the consumer unit

The consumer unit sat mid-way along the only long wall, so I ran a shelf beneath it and stacked cleaning bottles there. Resetting a trip meant reaching over glass.

The fix: nothing crosses a consumer unit, a flue or a meter. Plan the run around them from the first sketch.

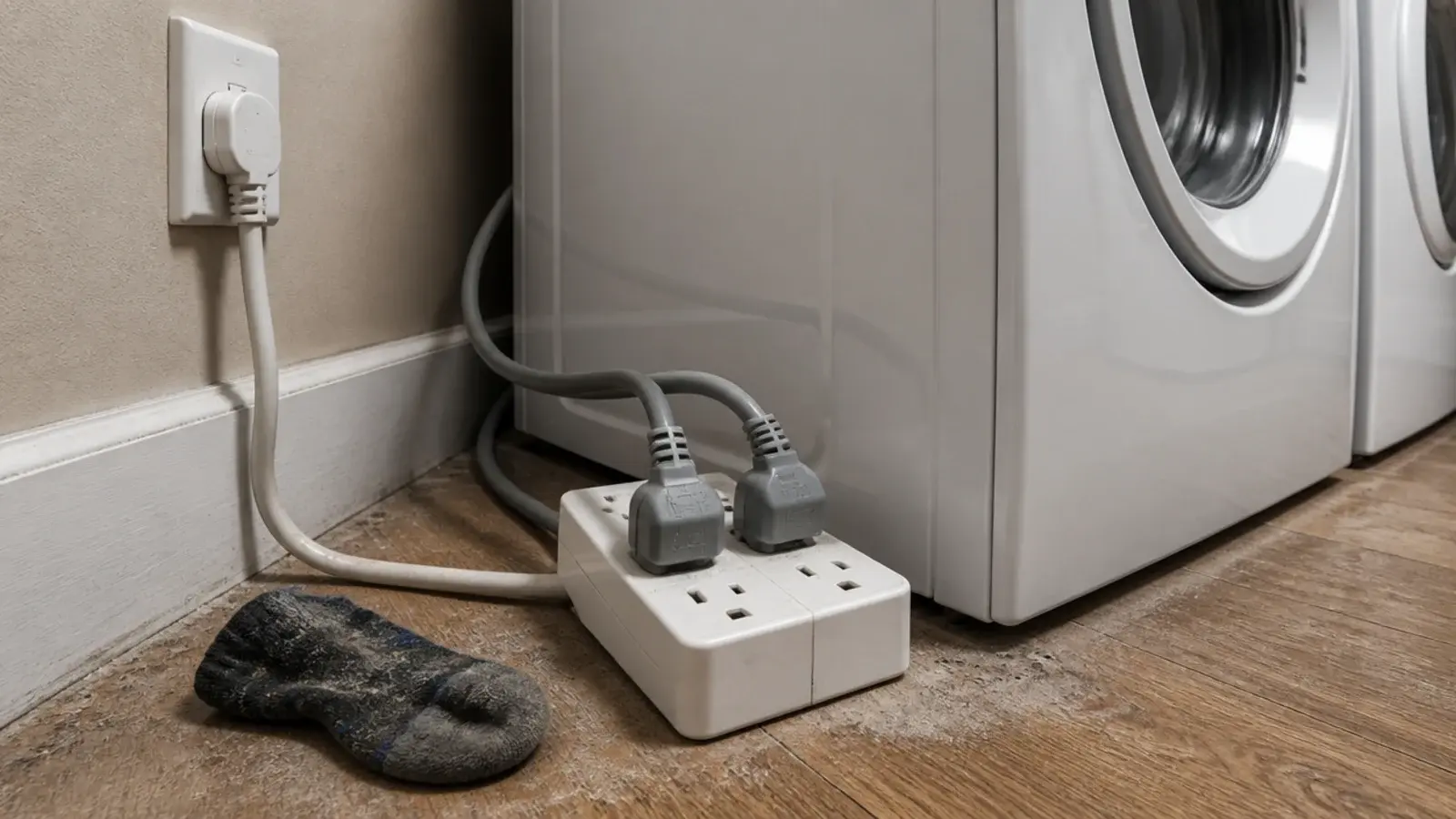

Mistake 17: I ran the machines off an extension lead

There was one socket. I ran a four-way extension behind the machines and called it temporary, which it was for roughly three years.

The fix: a washer and a dryer each want their own 15 to 20 amp circuit; an electric dryer is 240 volts on 30 amps.

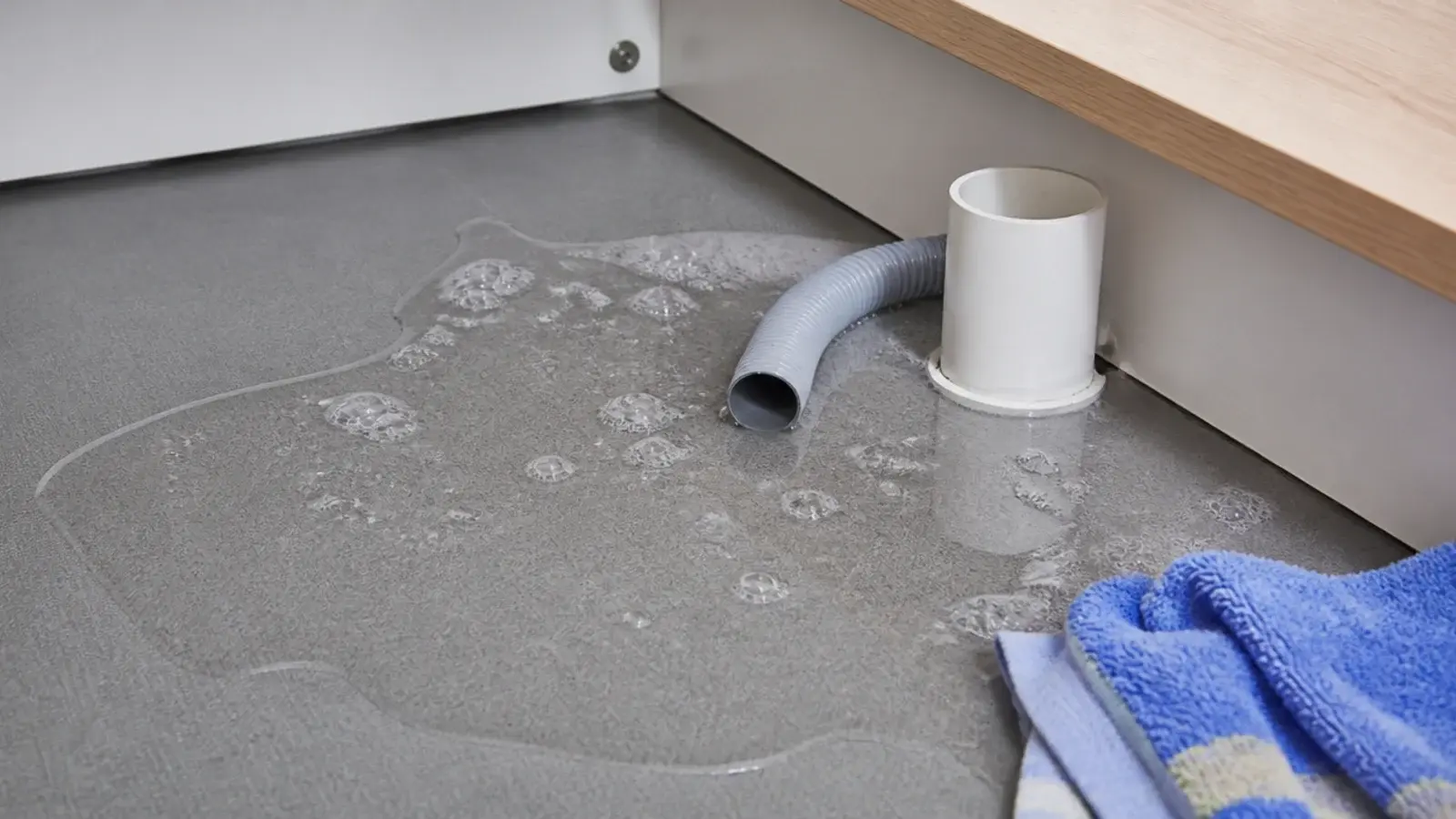

Mistake 18: I cut the standpipe too short

The standpipe was cut short to fit under the worktop and the hose sat loose in it. On a fast spin it jumped out and emptied a load across the floor.

The fix: standpipe top 18 to 42 inches above the trap weir, P-trap 6 to 18 inches up, hose retainer screwed on.

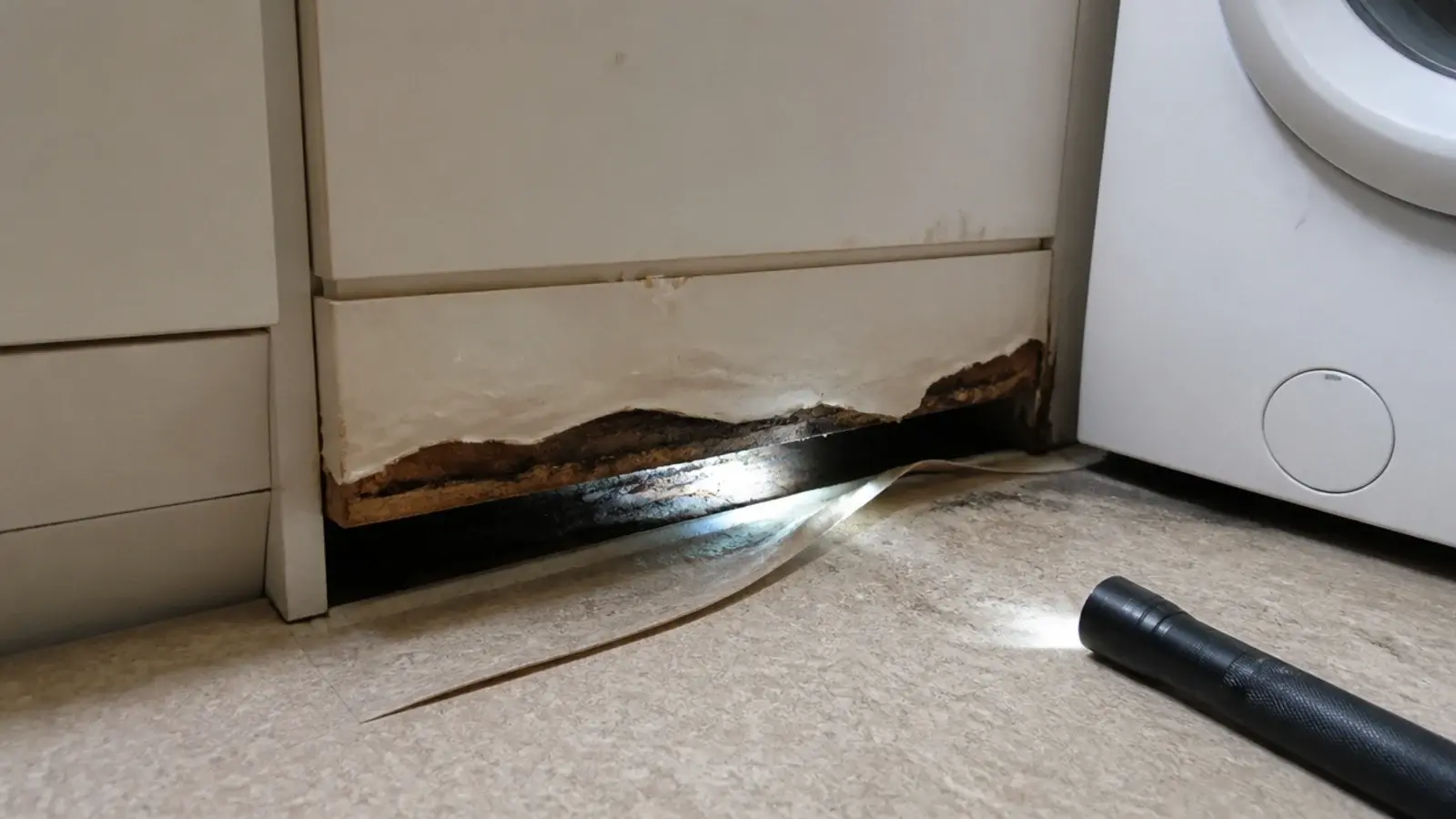

Mistake 19: I skipped the leak tray

A slow weep from the cold inlet ran under the cabinet for weeks. I found it when the plinth swelled and the vinyl lifted, by which point the base was finished.

The fix: a 30 by 30 inch leak tray under the washer, $25 to $50, fitted while the floor is bare.

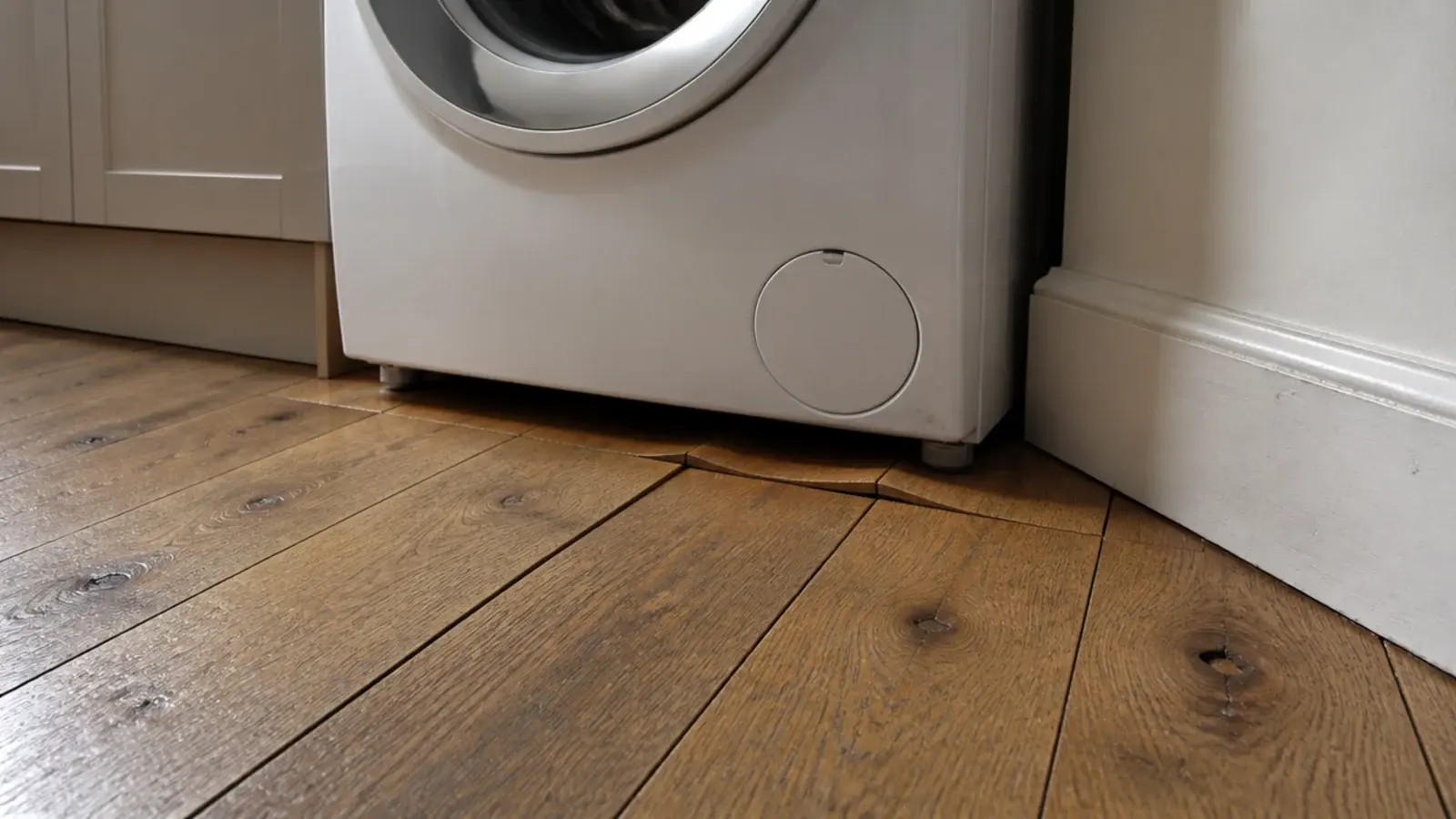

Mistake 20: I ran solid wood under the machines

I ran the solid oak boards from the kitchen through the utility and under both machines, tight to the walls, because it looked neater.

The fix: never run solid wood under a machine, and leave a 3/8-inch expansion gap. Sealed porcelain, LVT or safety vinyl at R10 to R11 belongs here.

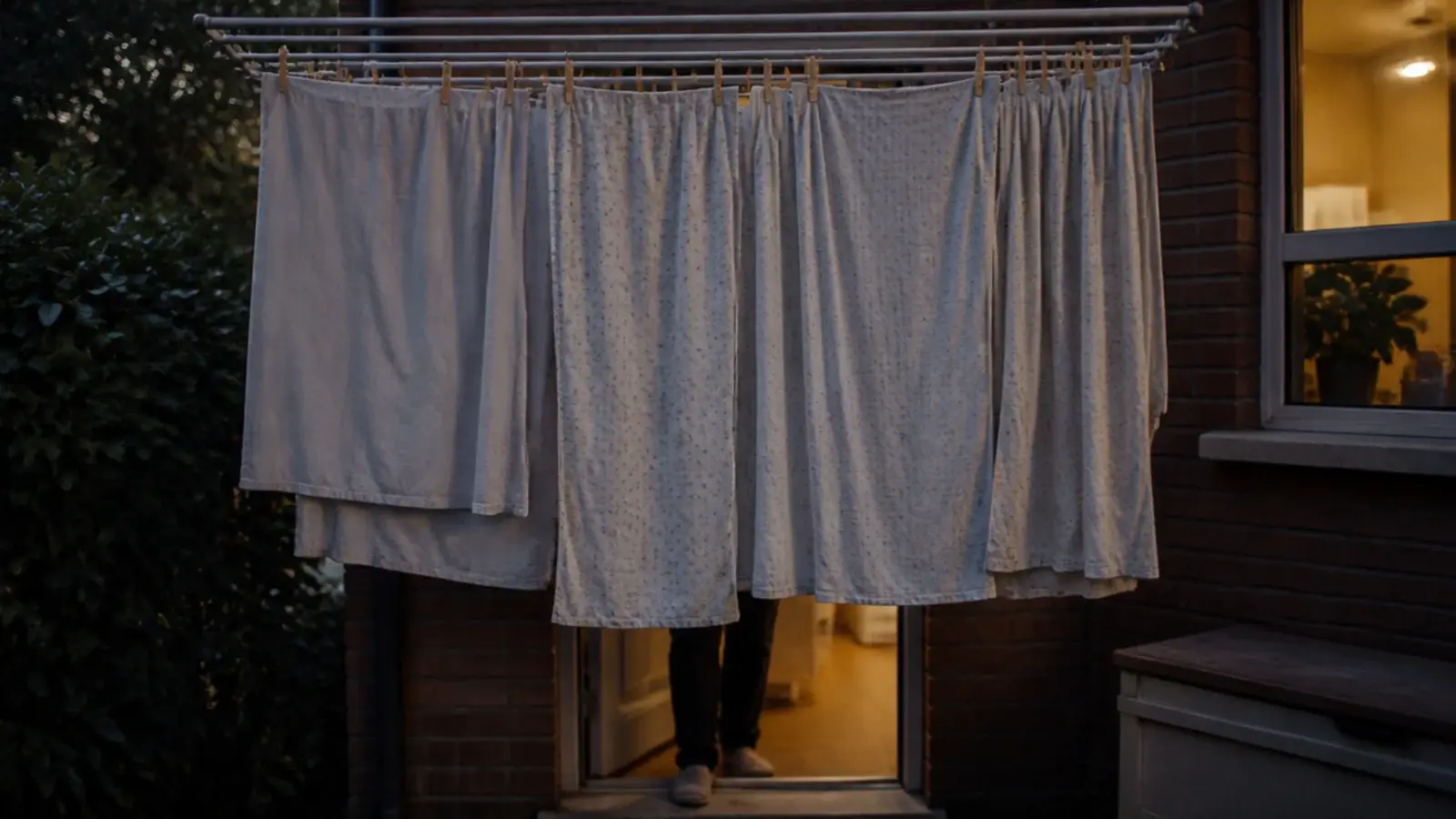

Mistake 21: I hung the airer over the doorway

The airer went up where there was ceiling space, which turned out to be directly over the door. Lowered and loaded, it blocked the only way in.

The fix: hang it over the warmest, best-ventilated stretch of floor, at least 7 feet up, never in the swing of a door.

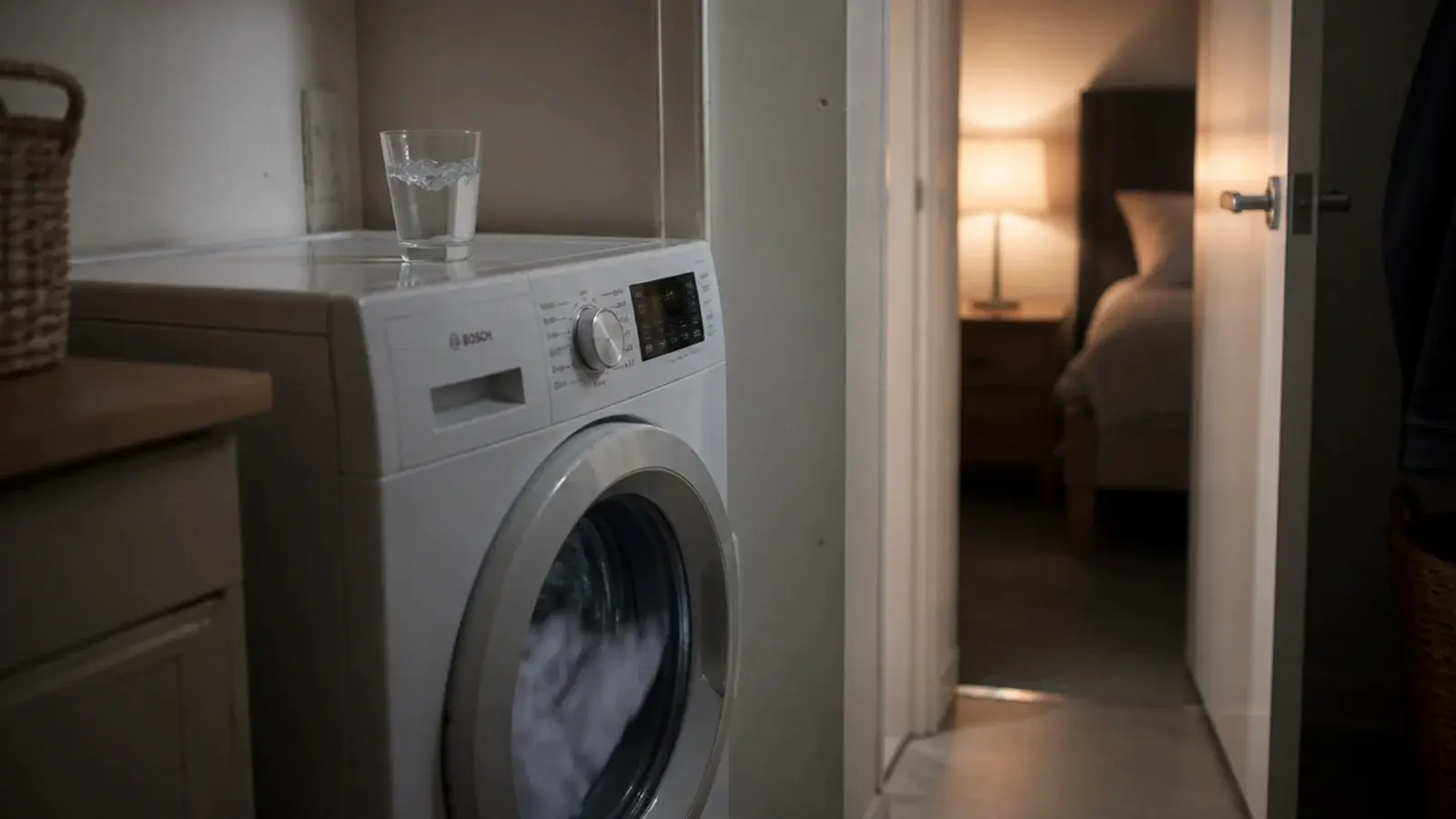

Mistake 22: I put the machines on a bedroom wall

The machines went on the only free wall, which was shared with a bedroom. A 1,400 rpm spin runs 72 to 76 dB and carried straight through.

The fix: 4 inches of mineral wool in the stud wall and a solid-core door take 8 to 10 dB off. Anti-vibration mats cost $15 to $30.

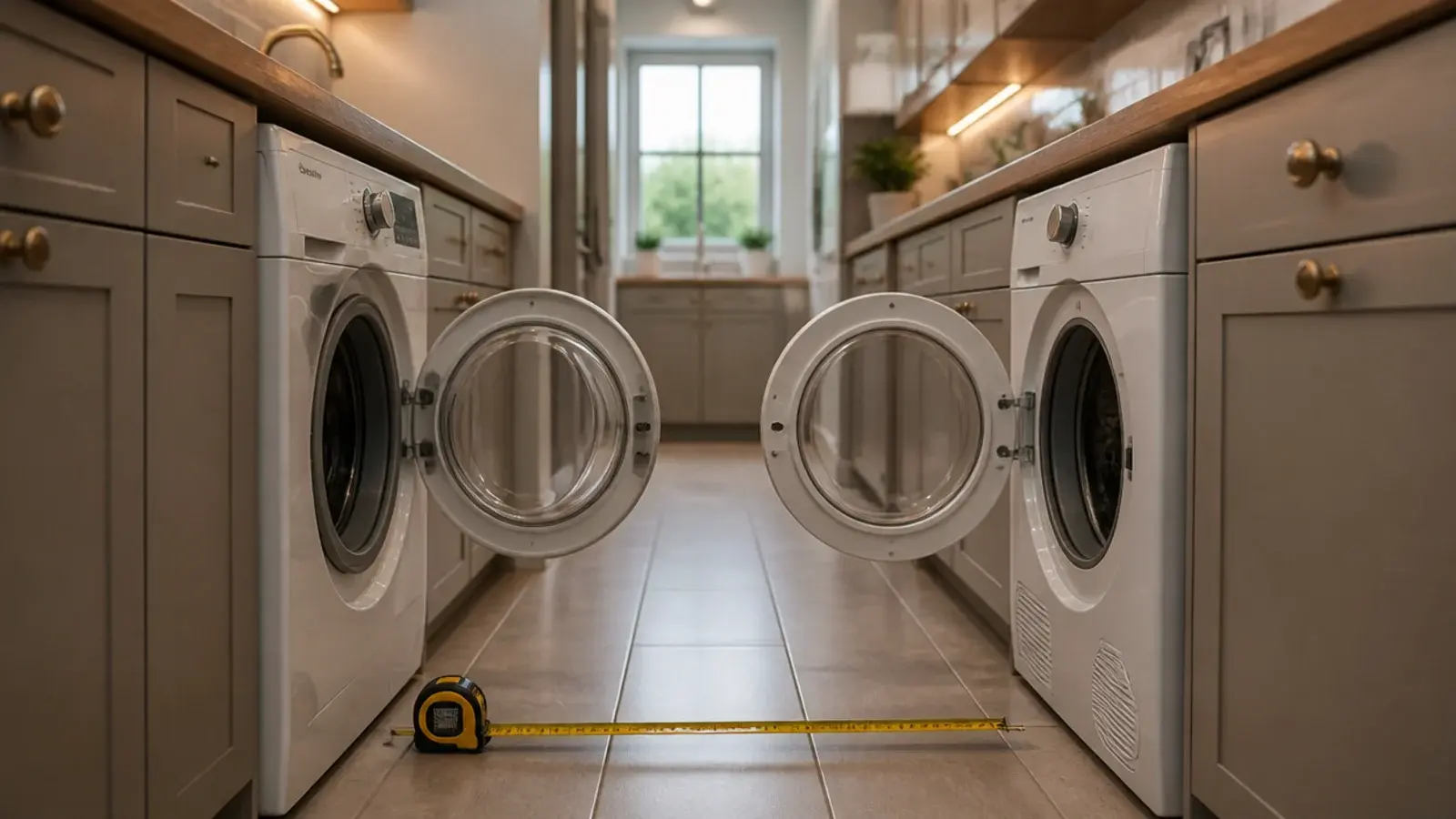

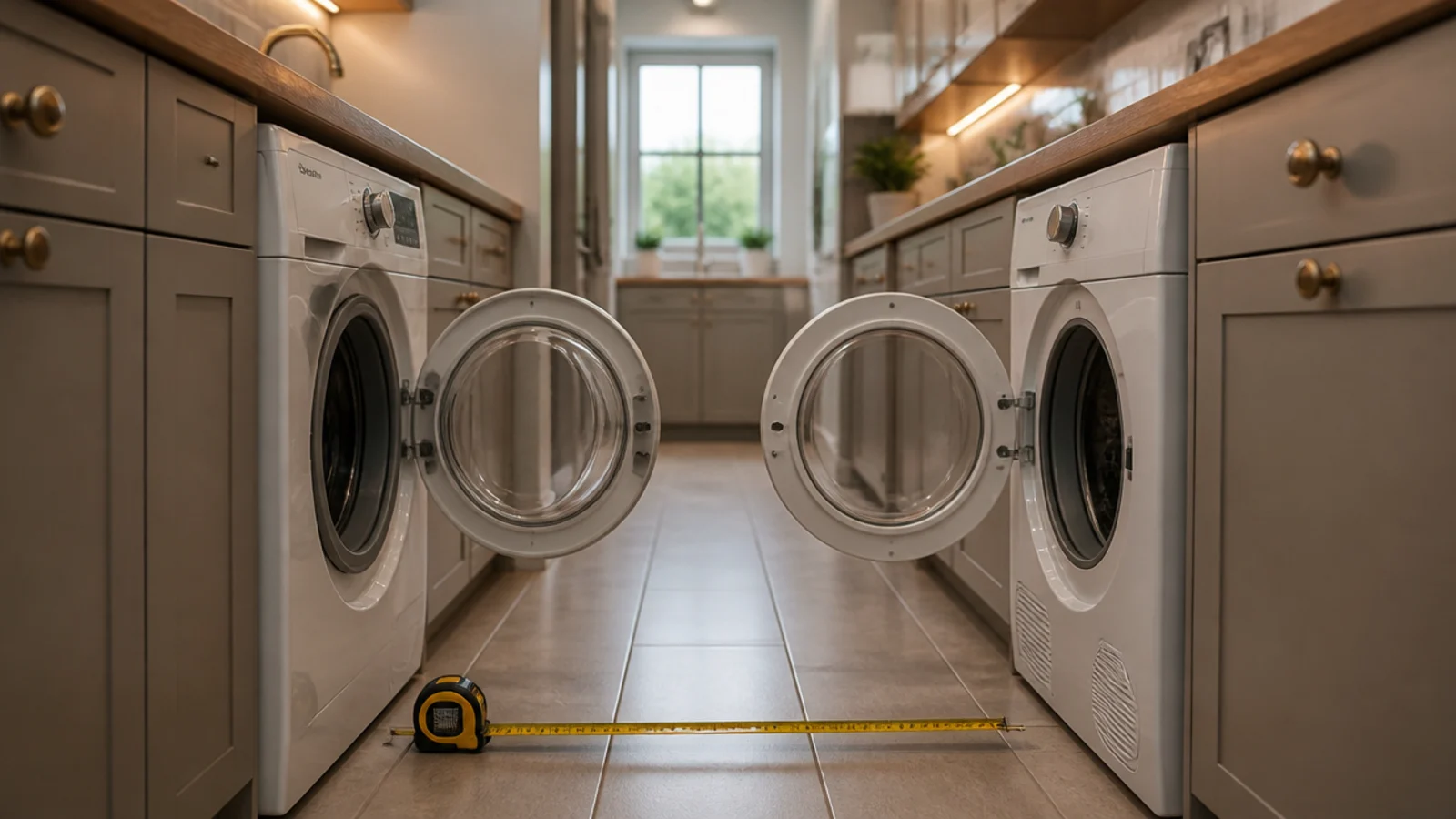

Mistake 23: I faced two appliance doors across a galley

Galley layout, 36 inches between the runs, machine doors on both sides. Two doors open at once and the gap disappears, which I understood on the first Saturday.

The fix: 42 inches when appliance doors face each other, or put every machine on one run and keep the other side shallow.

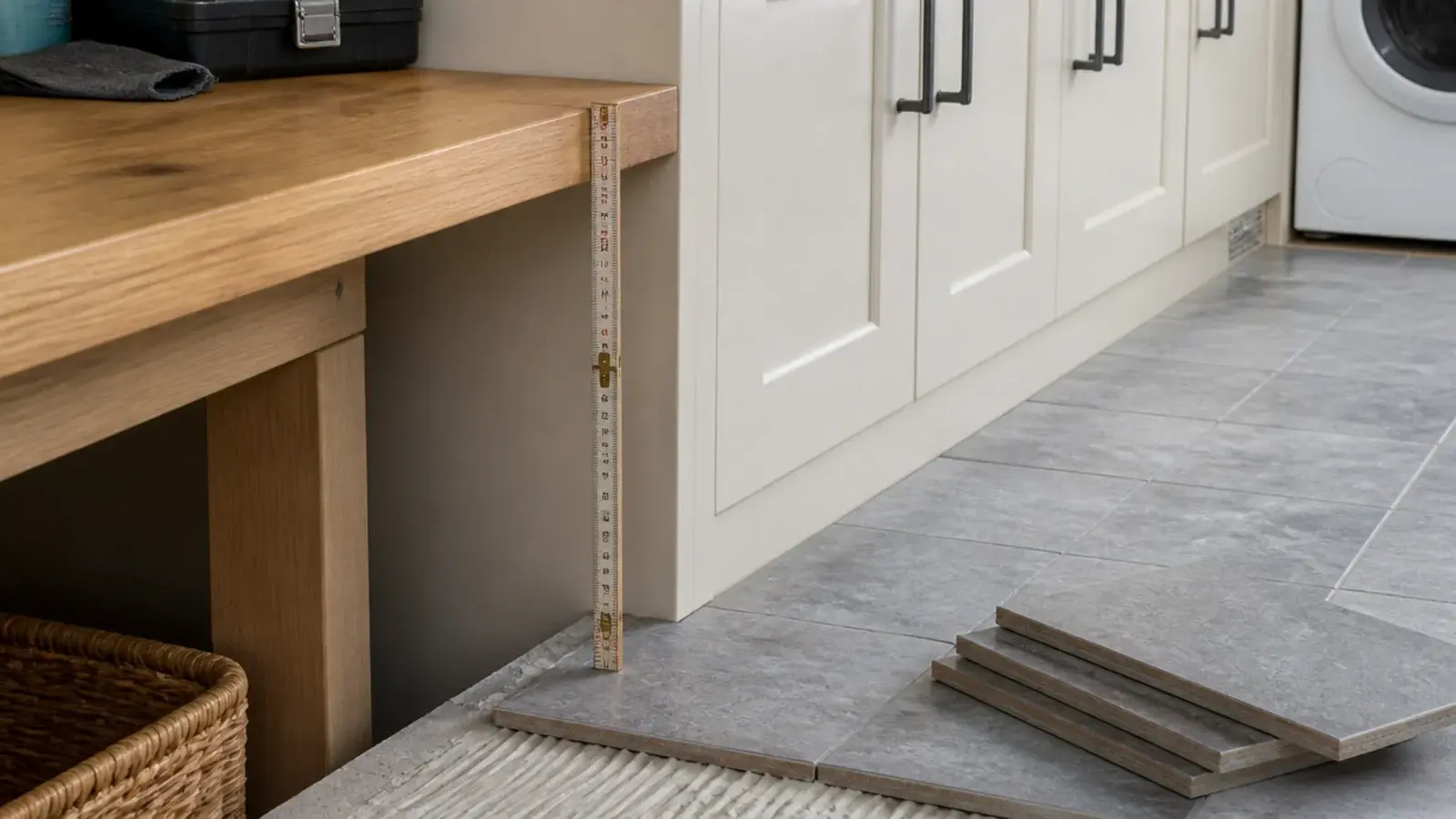

Mistake 24: I measured the worktop off a bare screed

I had the worktop cut to a 36-inch finished height measured off bare screed. Then 18 mm of tile and adhesive went down and the counter landed at 34.5 inches.

The fix: measure from the finished floor, or add the floor build-up to every vertical dimension before ordering.

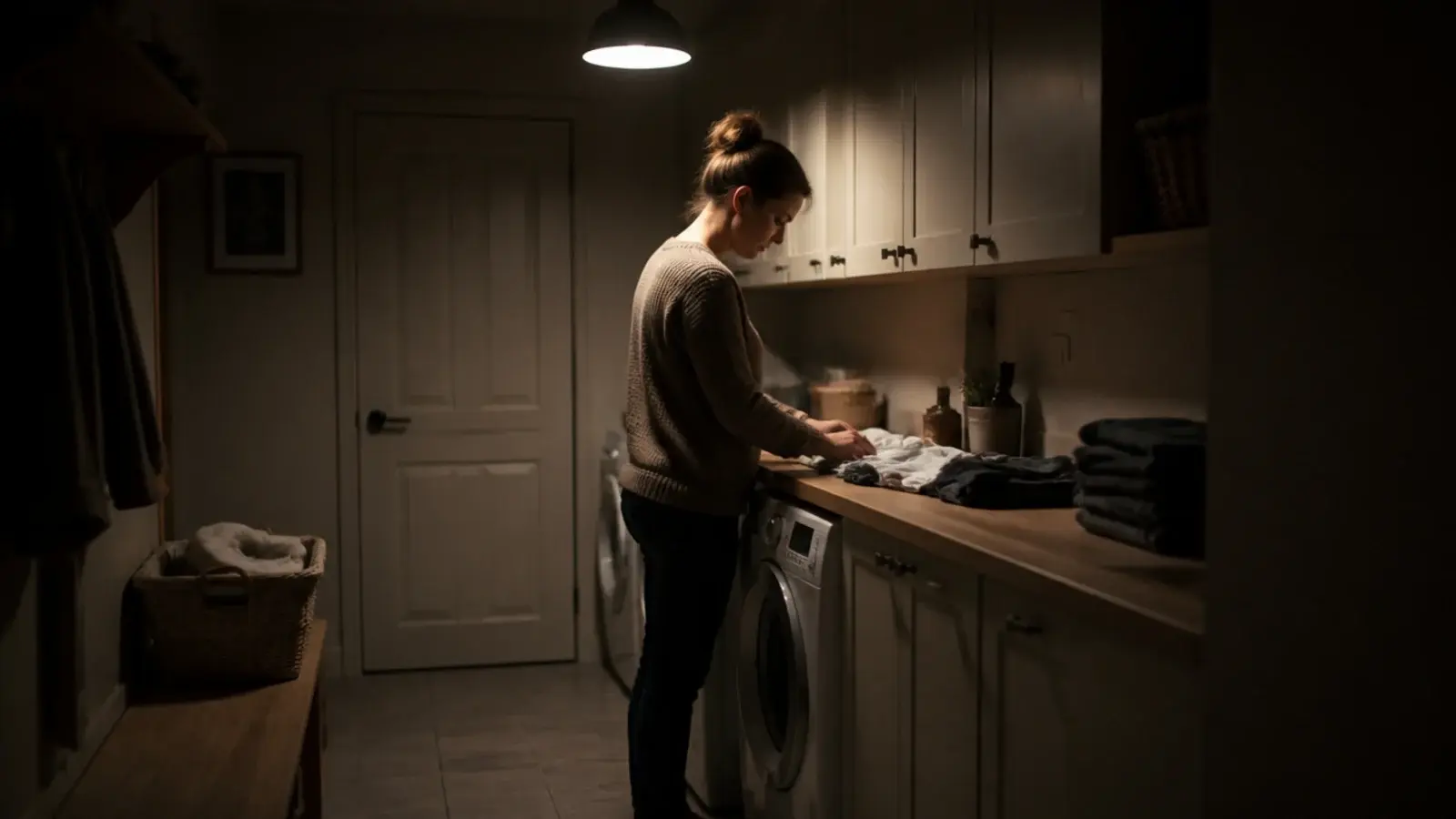

Mistake 25: I put the only light behind me

One central ceiling light, directly behind wherever I stood at the worktop. I sorted laundry in my own shadow for four years and assumed the room was dark.

The fix: LED task strips under the wall cabinets, plus one warm 2700K fitting so it does not read as a workshop.

Utility Room Ideas Layout: What I'd Do Differently Now

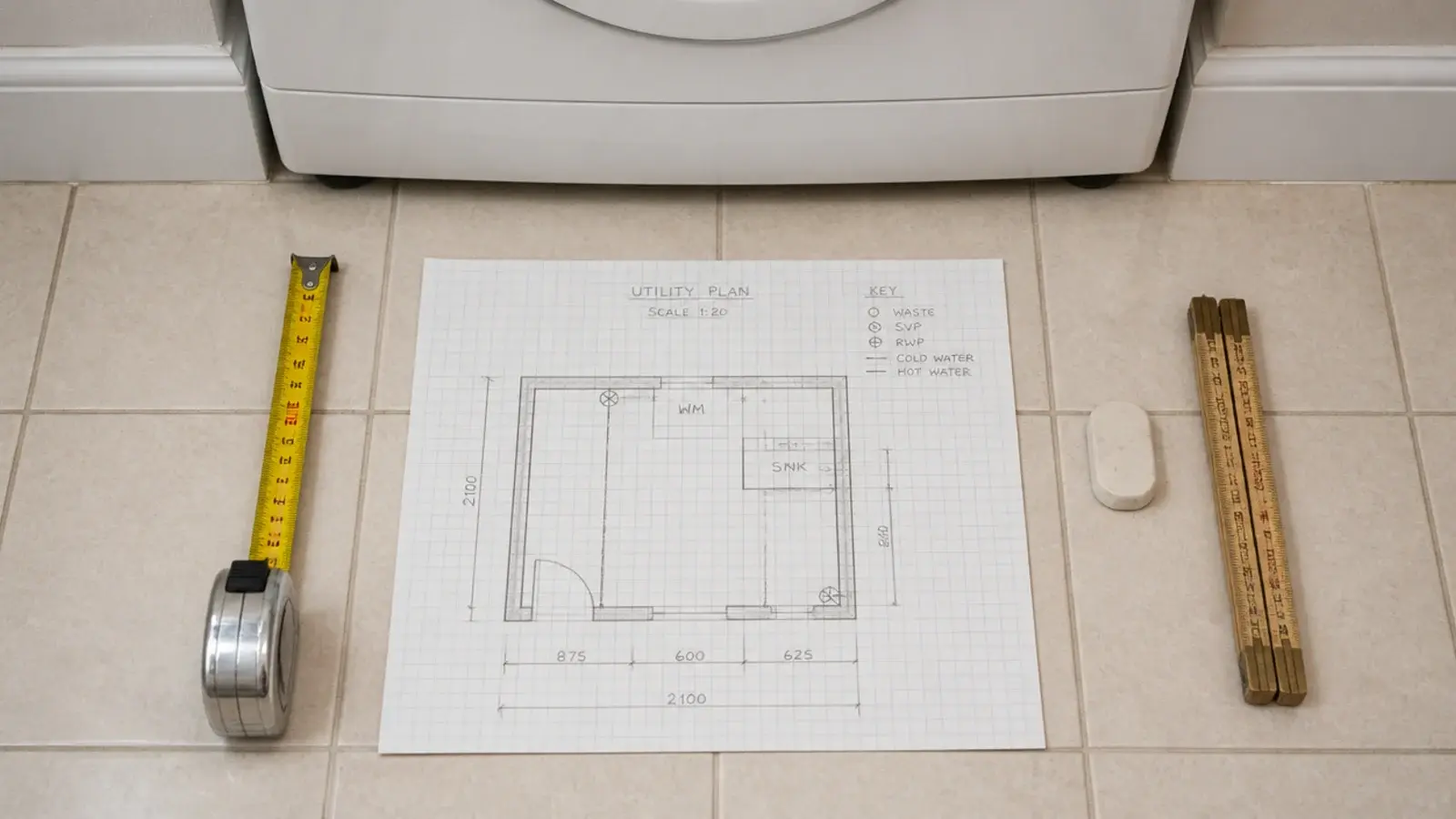

I would draw the machines first and the cabinets last. Every utility I have ended up happy with started as two rectangles on graph paper: a 29-inch opening, 40 inches of depth, everything else arranged around them.

I would spend the first hour on services rather than finishes: where the waste goes, where the vent goes, where the boiler and meter sit, and which wall takes a 15 to 20 amp circuit without a rewire. None of them shows in a photograph, and all of them decide the plan.

And I would put drying and folding ahead of storage, keeping 42 inches of walkway even where 36 was allowed. A utility that dries a load properly and gives you 24 inches of clear worktop is a good room even with open shelves and no doors. A beautifully fitted one with nowhere to hang anything is a cupboard with a machine in it.

If your room is long and thin, narrow utility room ideas covers the single-run version where facing-door problems never arise. If wet boots clog the layout, entryway shoe storage has the shallow depths that keep a walkway intact. Draw the machines first.
